Station details:
================

Code: AHML
Latitude: -26.78473
Longitude:  -65.33454
Elevation:   670.0
Depth:
Name: Horco Molle
Region: Tucuman,Argentina
Status:

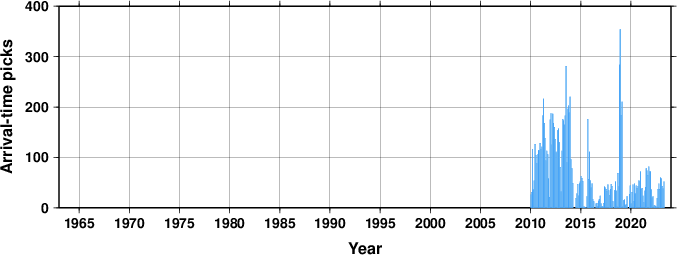

Arrival picks statistics
Travel Time Analysis

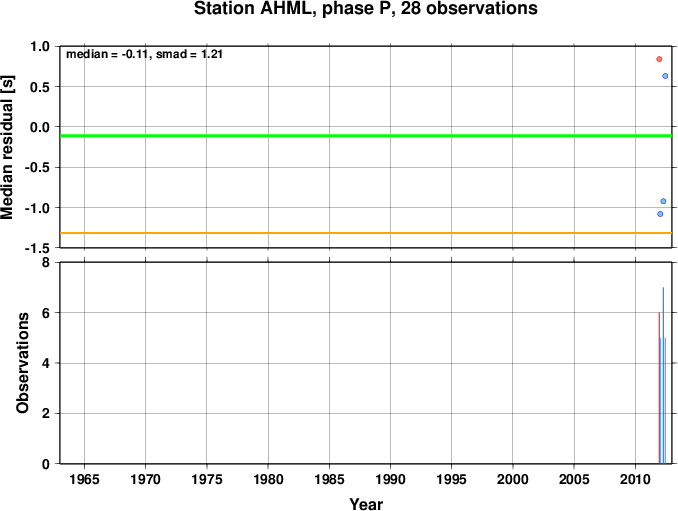

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

Locally used equivalent codes - HM4V THA TH1V TH11

Data at the ISC for 15 years between 2010 and 2024.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

AHML   Horco Molle                                                  -26.78561  -65.33539     658.0         03-03-2000 15-09-2010
       Tucuman,Argentina
