Station details:
================

Code: BR231
Latitude:  39.84172
Longitude:   32.77597
Elevation:  1196.1
Depth:
Name: Keskin MP Array Site 231
Region: Turkey
Status:


BR231 is an alternative code for BRMAR

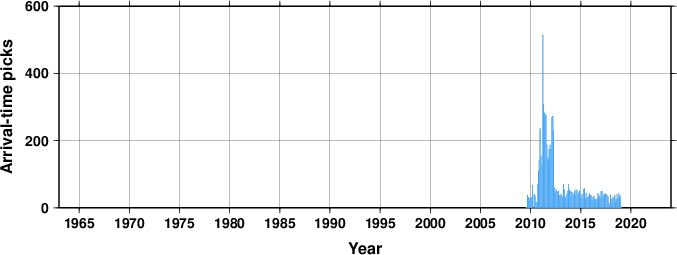

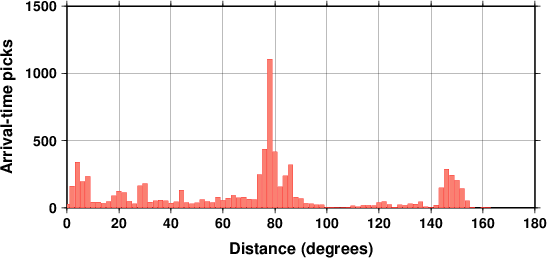

Arrival picks statistics
Travel Time Analysis

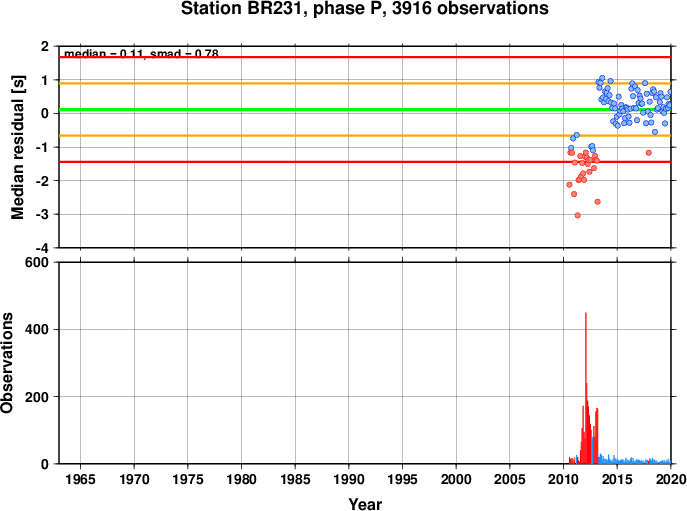

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

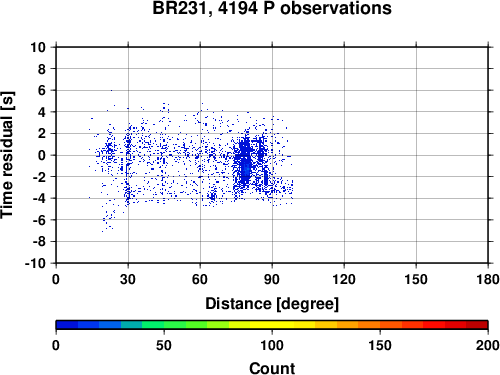

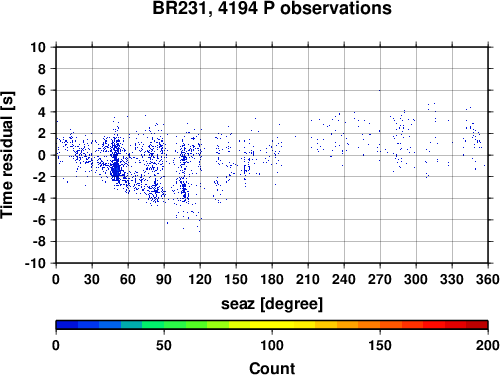

Travel time residuals


Station comments:
=================

opened 200303

Data at the ISC for 11 years between 2009 and 2019.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

BR231  Keskin MP Site                                                39.84172   32.77597    1257.8         04-04-2003 21-08-2003
       Turkey
