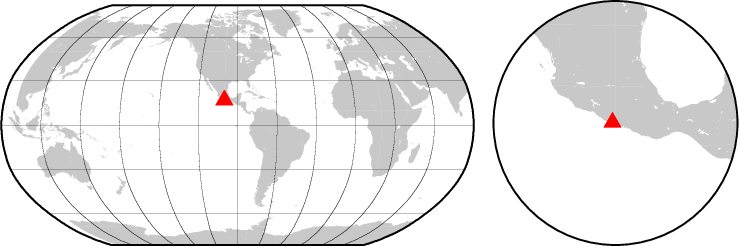

Station details:
================

Code: CAIG
Latitude:  17.04781
Longitude: -100.26731
Elevation:    80.0
Depth:
Name: El Cayaco
Region: Guerrero,Mexico
Status:

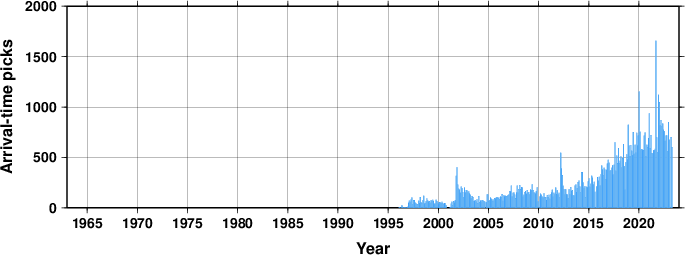

Arrival picks statistics
Travel Time Analysis

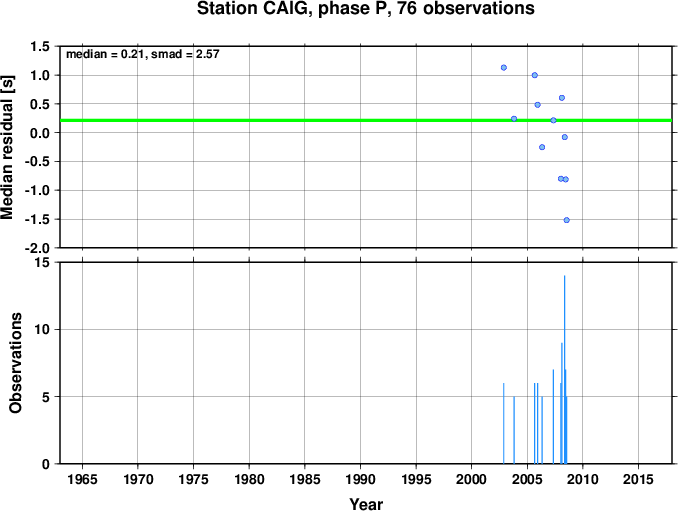

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

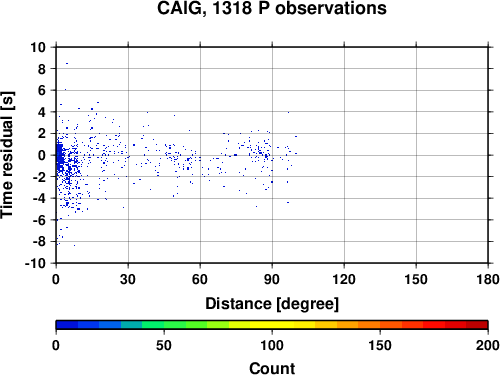

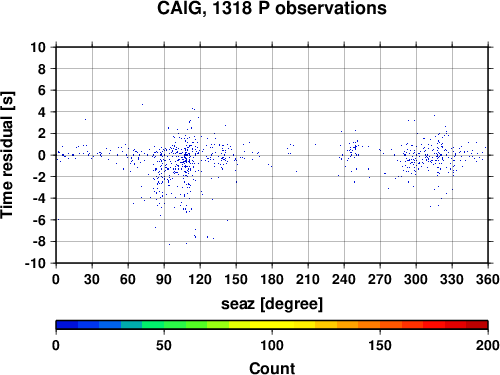

Travel time residuals


Station comments:
=================

Coordinates corrected Mar 1999
opened 1994

Data at the ISC for 29 years between 1996 and 2024.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

CAIG   El Cayaco                                                     17.04780 -100.26700      80.0         25-08-1999 25-08-1999
       Guerrero

CAIG   El Cayaco                                                     17.04800 -100.26800      80.0         25-08-1999 03-03-2000
       Guerrero
