Station details:
================

Code: DBQ
Latitude:  42.50670
Longitude:  -90.68330
Elevation:   244.0
Depth:
Name: Dubuque
Region: Iowa,U.S.A.
Status:

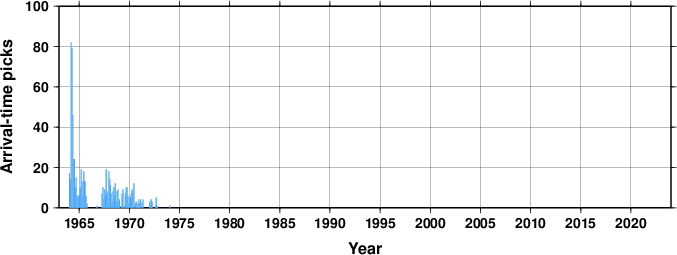

Arrival picks statistics
Travel Time Analysis

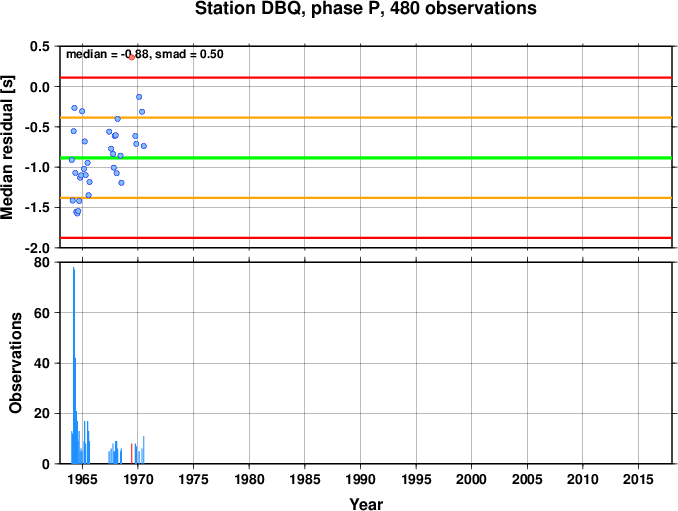

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

Checked against station bulletin
opened 1962

Data at the ISC for 12 years between 1961 and 1974.
