Station details:
================

Code: DHD
Latitude:  15.43278
Longitude:   74.98439
Elevation:   755.0
Depth:
Name: Dharwar
Region: Goa, Daman and Diu,India
Status:

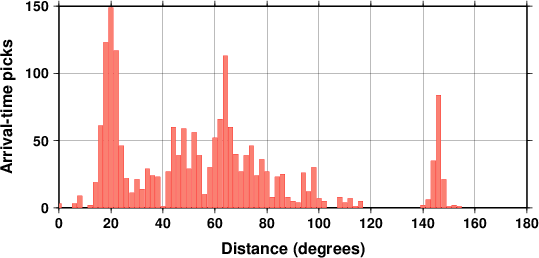

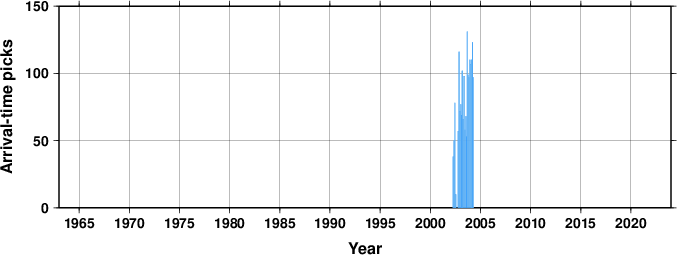

Arrival picks statistics
Travel Time Analysis

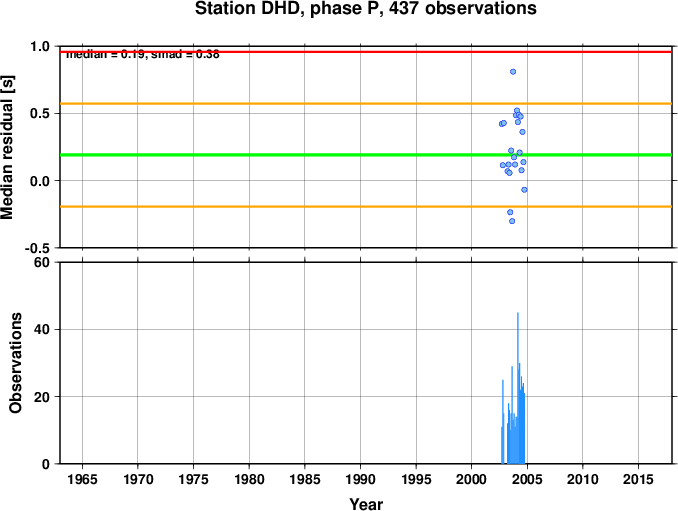

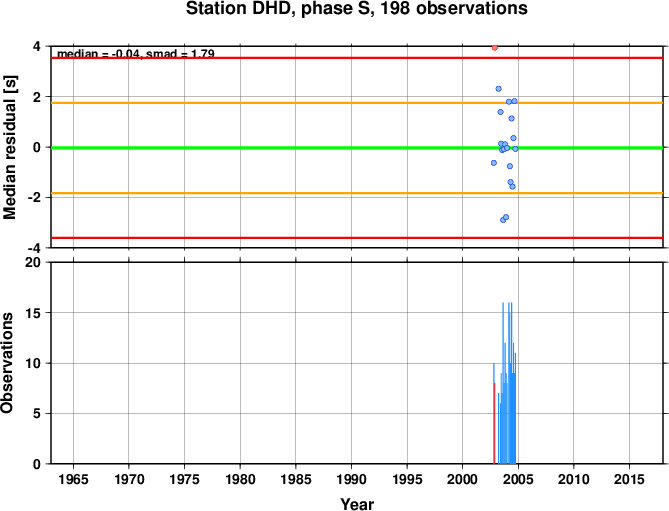

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

opened 200107
BB station

Data at the ISC for 3 years between 2002 and 2004.
