Station details:
================

Code: DIB
Latitude:  53.20247
Longitude: -132.47667
Elevation:    68.0
Depth:
Name: Dawson Inlet, BC
Region: British Columbia,Canada
Status:


Arrival picks statistics
Travel Time Analysis

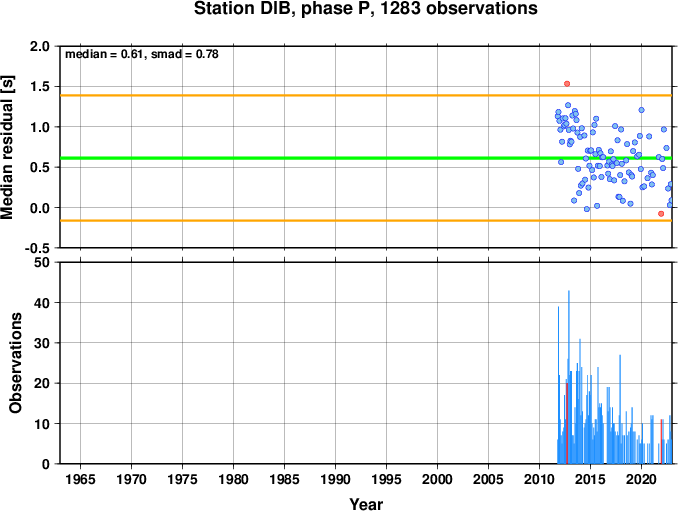

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

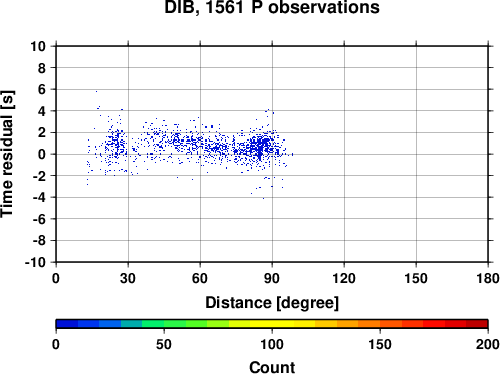

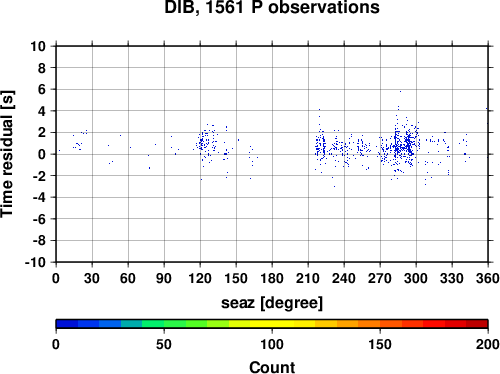

Travel time residuals


Station comments:
=================

Co-ordinate update

Data at the ISC for 19 years between 2006 and 2024.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

DIB    Dawson Inlet, BC                                              53.12090 -132.28360      68.0         19-03-2004 14-04-2005
       British Columbia,Canada
