Station details:
================

Code: DID
Latitude:  37.50630
Longitude:   23.23680
Elevation:   520.0
Depth:
Name: Didima
Region: Greece
Status:

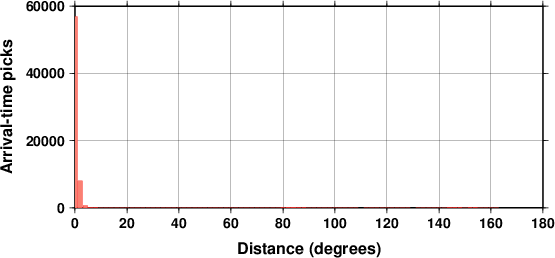

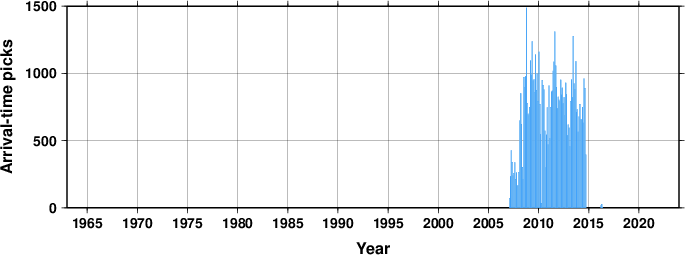

Arrival picks statistics
Travel Time Analysis

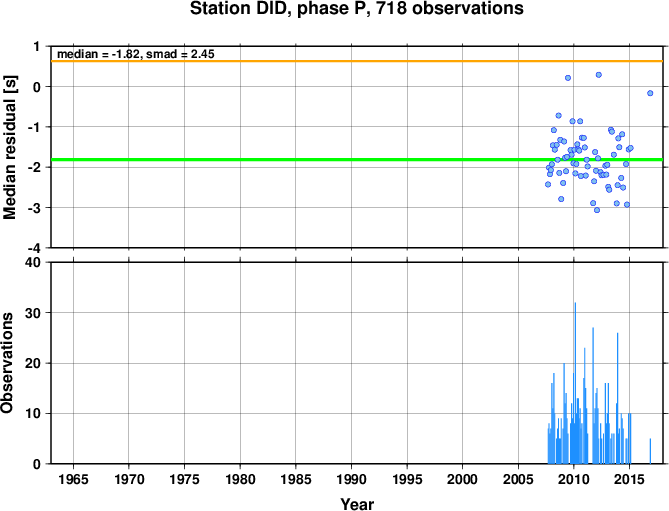

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

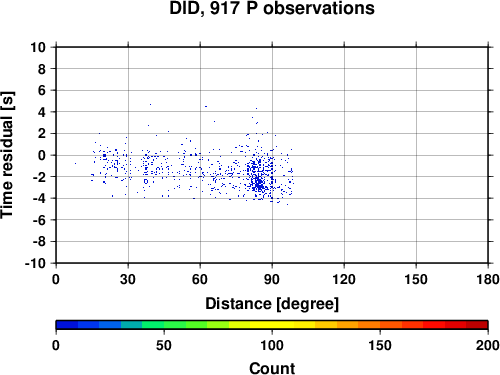

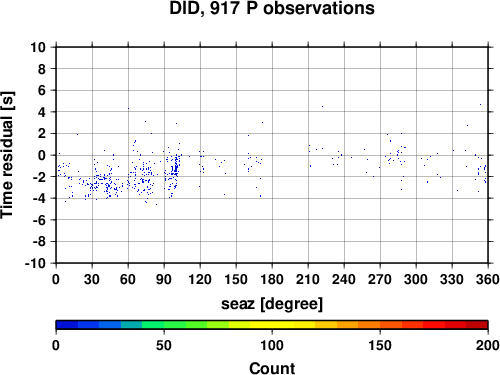

Travel time residuals


Station comments:
=================

The station belongs to the seismological network of the University of
Patras, (code HP from FDSN)

Data at the ISC for 9 years between 2007 and 2016.
