Station details:
================

Code: DOI
Latitude:  44.50414
Longitude:    7.24664
Elevation:  1039.0
Depth:
Name: San Damiano
Region: Italy
Status:

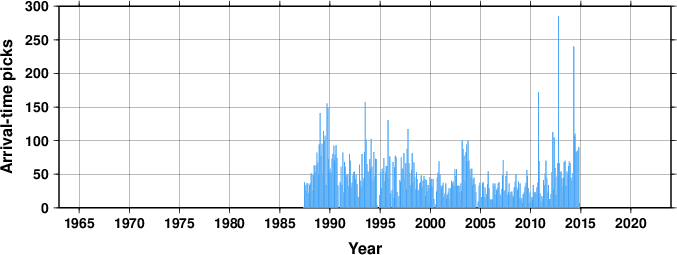

Arrival picks statistics
Travel Time Analysis

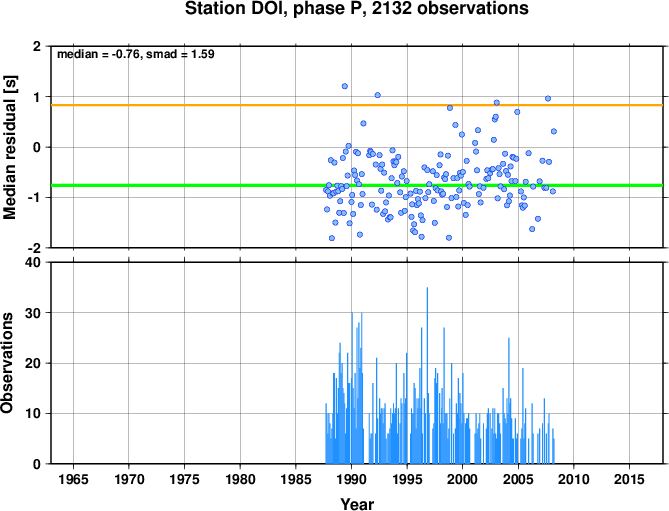

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

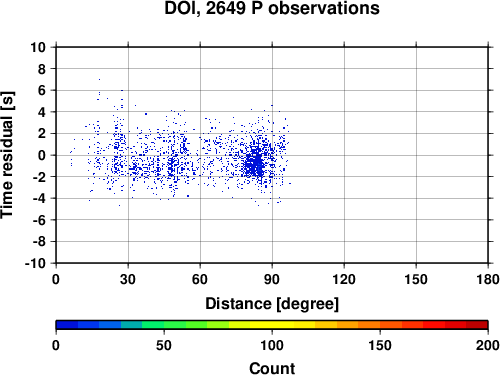

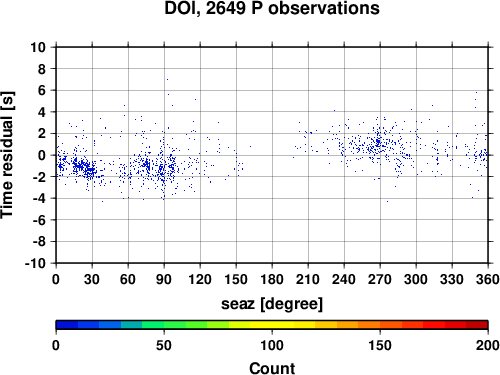

Travel time residuals


Station comments:
=================

San Damiano Macra
opened 198507
Coords corrected slightly 20031007

Data at the ISC for 28 years between 1987 and 2014.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

DOI    San Damiano                                                   44.50360    7.24539    1015.0         25-08-1999 25-08-1999
       Italy
