Station details:
================

Code: DSH
Latitude:  38.55830
Longitude:   68.77500
Elevation:   847.0
Depth:
Name: Dushanbe
Region: Tajikistan
Status:

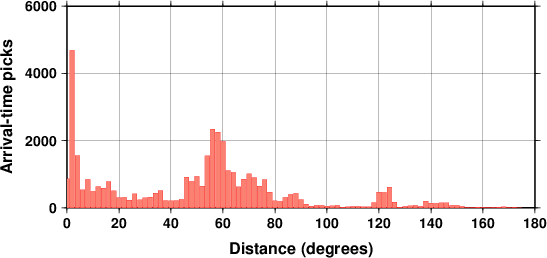

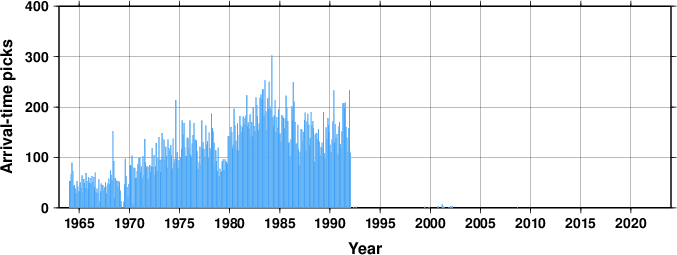

Arrival picks statistics
Travel Time Analysis

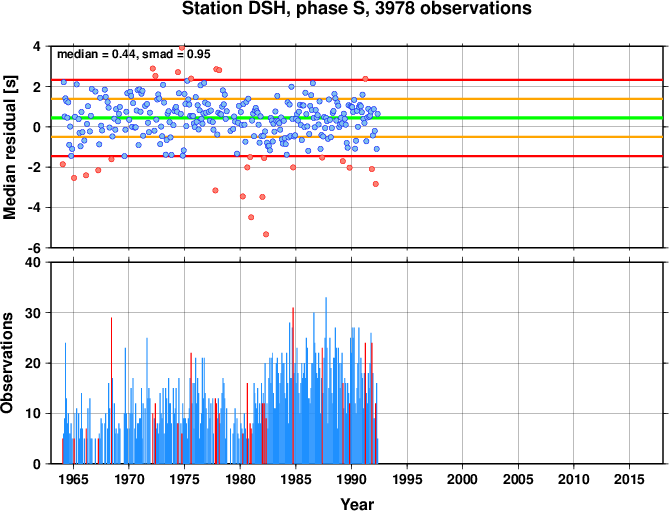

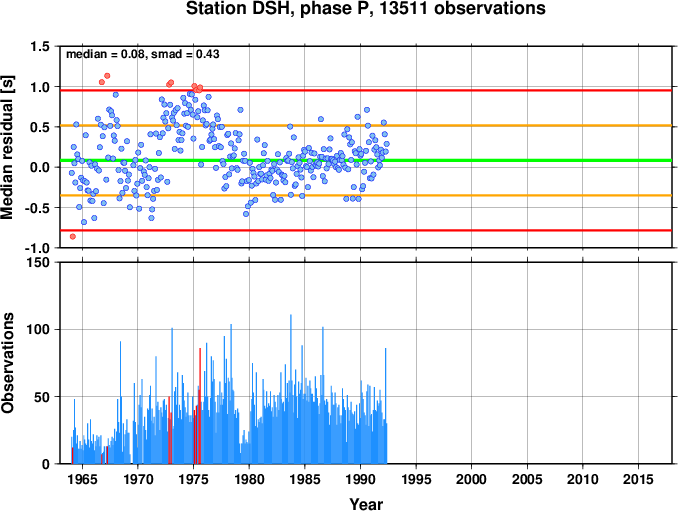

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

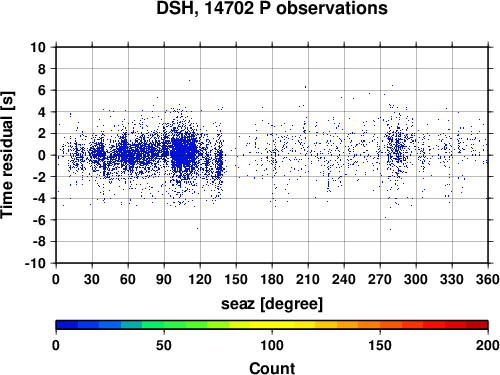

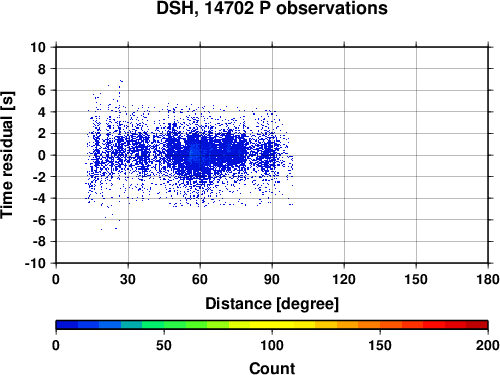

Travel time residuals


Station comments:
=================

Checked against station bulletin
XC2R4-RAT-RCH-RID-RIM-RKM-RTA-RWM
Dushambe
opened 1939
Sent to NEIS by OBN

Data at the ISC for 57 years between 1941 and 2008.
