Station details:
================

Code: DSI
Latitude:  31.57000
Longitude:   35.38000
Elevation:   200.0
Depth:
Name: Dead Sea
Region: Israel
Status:

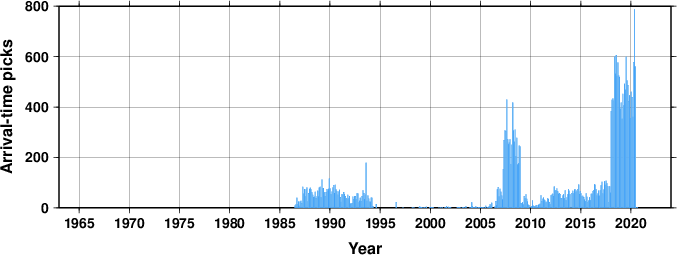

Arrival picks statistics
Travel Time Analysis

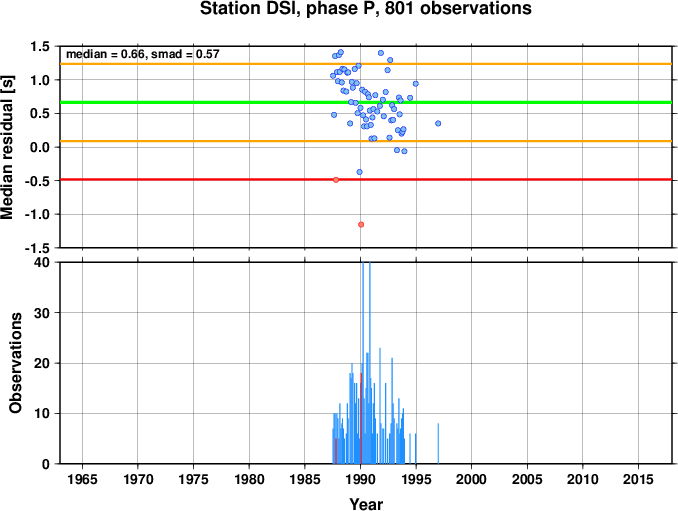

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

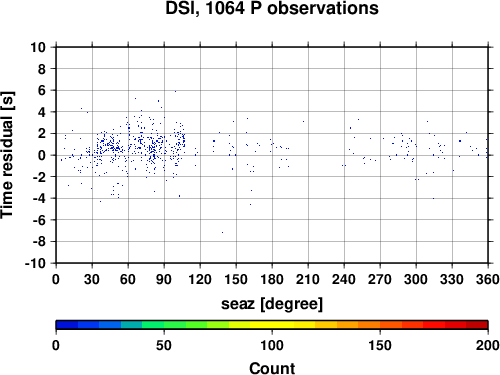

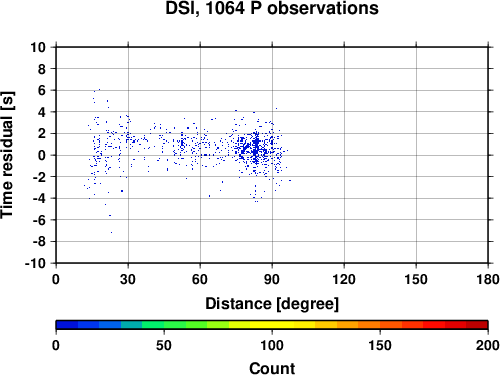

Travel time residuals


Station comments:
=================

Dead Sea-Mt Hatzatzon. Formerly Mitzpe Shalem, changed Jul 1990
opened 19860717

Data at the ISC for 34 years between 1986 and 2020.
