Station details:
================

Code: EAU
Latitude:  55.84540
Longitude:   -3.44739
Elevation:   359.0
Depth:
Name: Auchinoon
Region: Scotland,United Kingdom
Status:

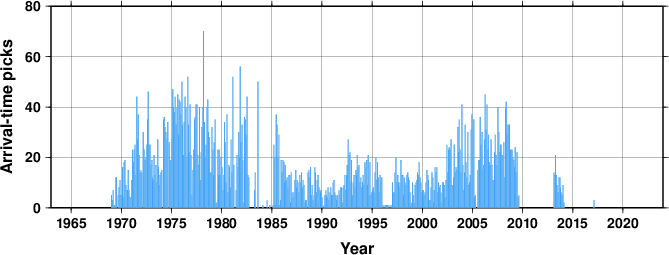

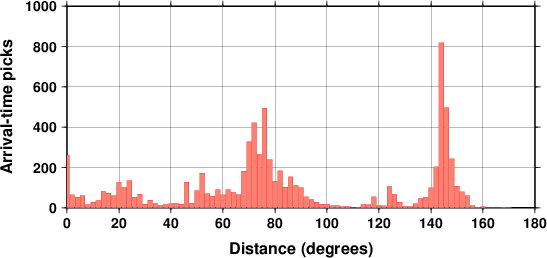

Arrival picks statistics
Travel Time Analysis

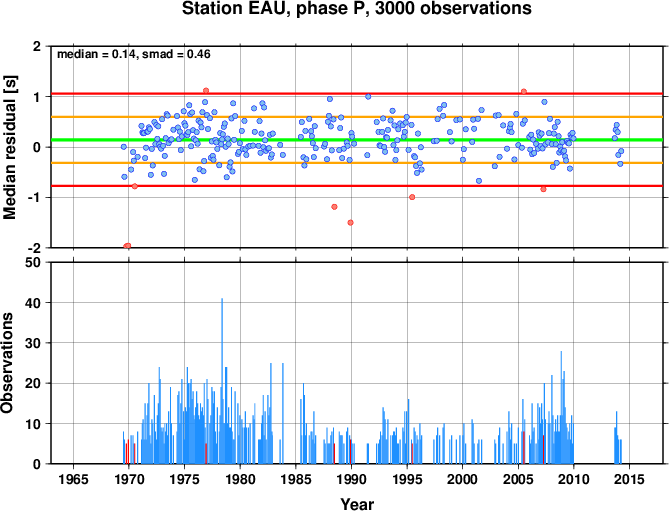

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.
Travel time residuals


Station comments:
=================

Correction to coordinates Jun 1993
XR24-HBG-MSF
opened 1969

Data at the ISC for 44 years between 1969 and 2017.
