Station details:
================

Code: EDR
Latitude:  56.91900
Longitude:   -2.53930
Elevation:   388.0
Depth:
Name: Drumtochty
Region: Scotland,United Kingdom
Status:

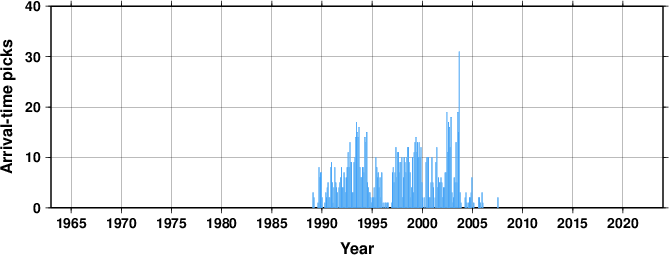

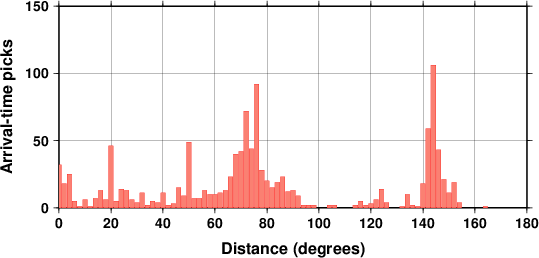

Arrival picks statistics
Travel Time Analysis

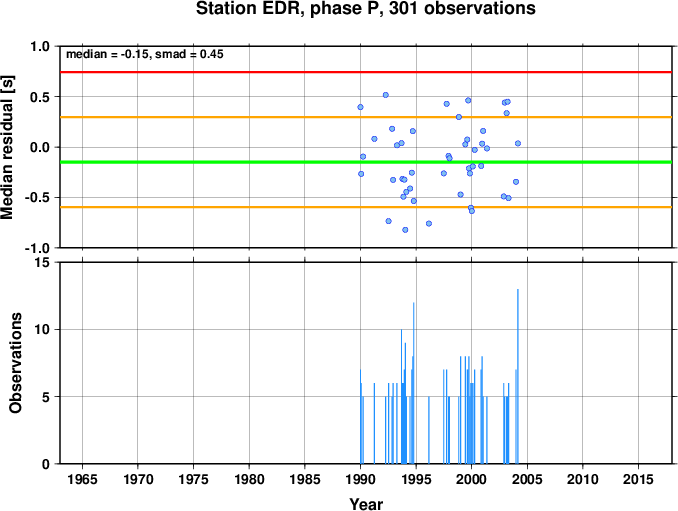

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

Checked against station bulletin
opened 19890112

Data at the ISC for 19 years between 1989 and 2007.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

EDR    Drumtochty                                                    56.91840   -2.54039     388.0         21-01-2003
       Scotland
