Station details:
================

Code: ELIM
Latitude: -34.59670
Longitude:   19.74500
Elevation:   472.0
Depth:
Name: Elim
Region: Cape Province,South Africa
Status:

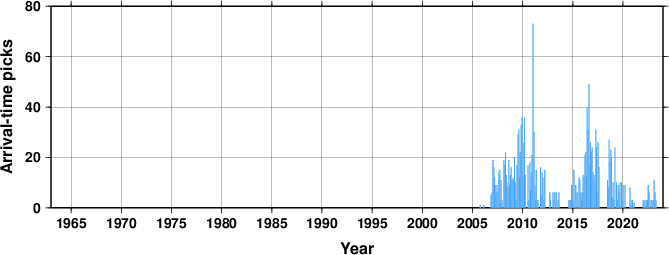

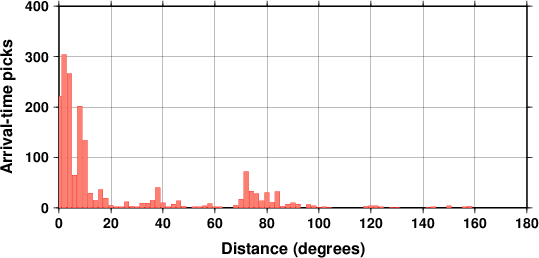

Arrival picks statistics
Travel Time Analysis
On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================


Data at the ISC for 19 years between 2005 and 2023.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

ELIM   Elim                                                         -34.59700   19.74500     126.0         01-06-2006 15-11-2006
       Cape Province
