Station details:
================

Code: FARB
Latitude:  37.69782
Longitude: -123.00110
Elevation:   -18.5
Depth:
Name: Farallon Islands
Region: California,U.S.A.
Status:

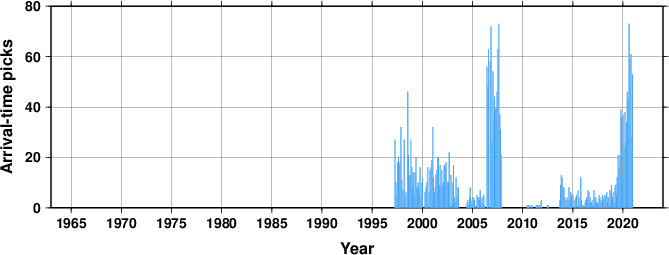

Arrival picks statistics
Travel Time Analysis

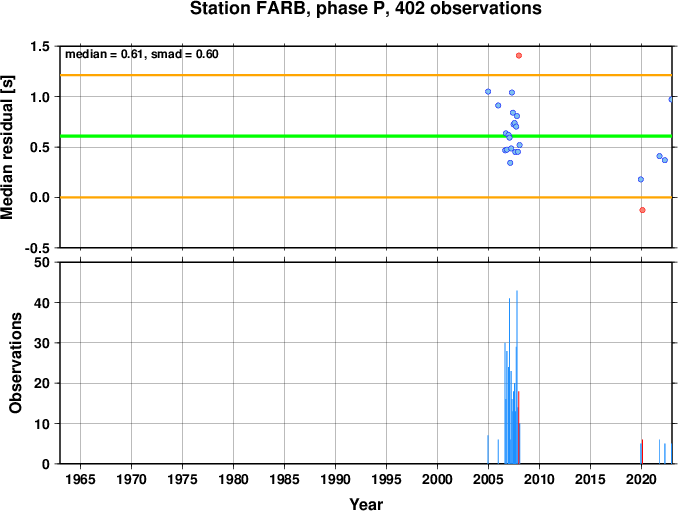

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

opened 19970315
Coords corrected 20000628
LDS inst
at 37.69747N, 123.00055W, -18.5m

Data at the ISC for 22 years between 1997 and 2020.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

FARB   Farallon Is.                                                  37.69789 -123.00000      26.0         25-08-1999 03-03-2000
       California
