Station details:
================

Code: FG3
Latitude:  41.70739
Longitude:   15.94942
Elevation:   858.0
Depth:
Name: Mte Sant'Angelo
Region: Italy
Status:

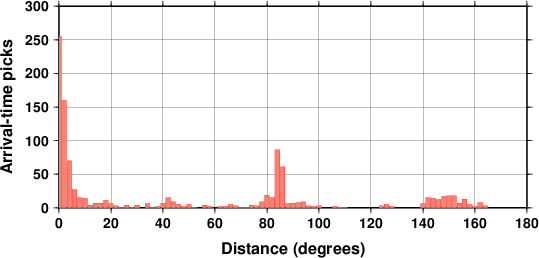

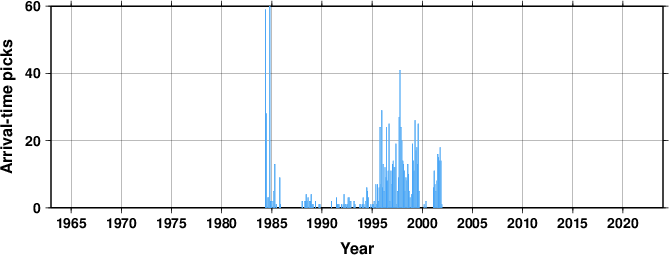

Arrival picks statistics
Travel Time Analysis

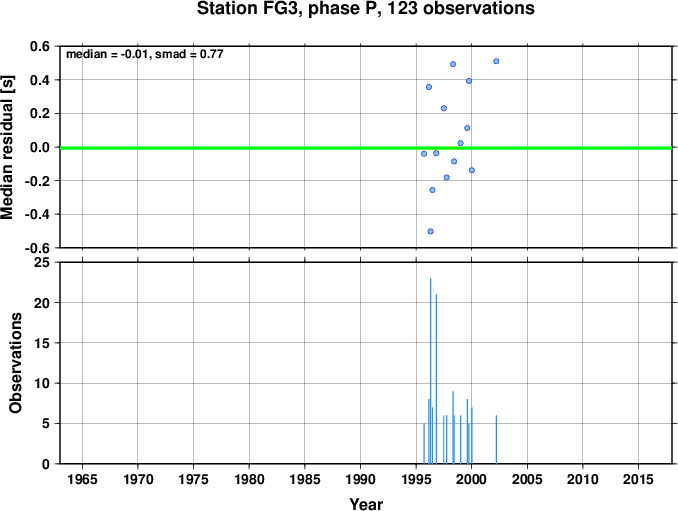

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

Checked against station bulletin
Monte Sant'Angelo
198502-19990909
Coords corrected slightly 199909
Sent to NEIS by ROM
Replaced by FGMS

Data at the ISC for 16 years between 1984 and 2001.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

FG3    Mte Sant'Angelo                                               41.70070   15.95030     830.0         25-08-1999 25-08-1999
       Italy
