Station details:
================

Code: FG4
Latitude:  41.13194
Longitude:   15.51750
Elevation:   450.0
Depth:
Name: Candela
Region: Italy
Status:

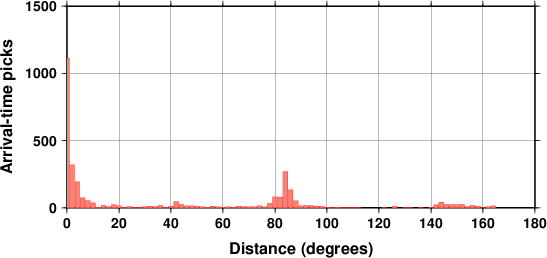

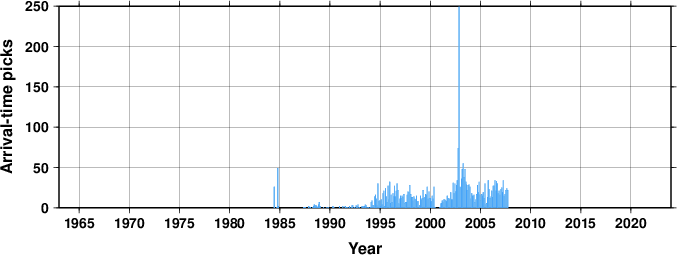

Arrival picks statistics
Travel Time Analysis

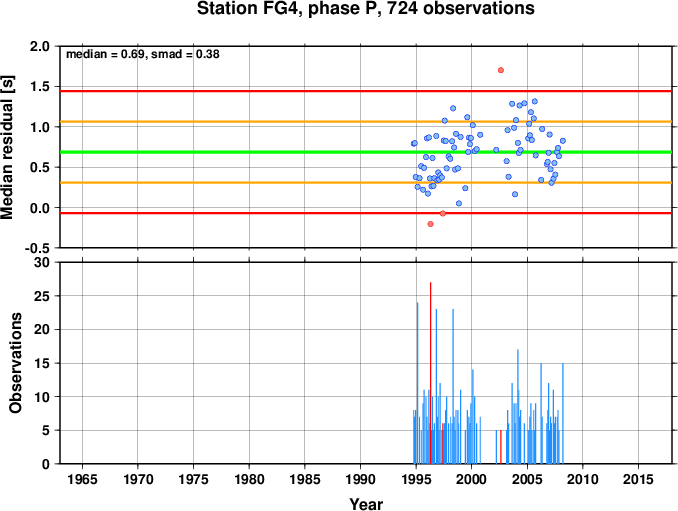

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.
Travel time residuals


Station comments:
=================

Checked against station bulletin
opened 198501
Coords corrected 199909
Sent to NEIS by ROM

Data at the ISC for 23 years between 1984 and 2007.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

FG4    Candela                                                       41.13470   15.52060     450.0         25-08-1999 25-08-1999
       Italy
