Station details:
================

Code: FUL
Latitude:  32.64760
Longitude:  -16.89220
Elevation:    58.0
Depth:
Name: Funchal
Region: Madeira Islands,Portugal
Status:


Arrival picks statistics
Travel Time Analysis

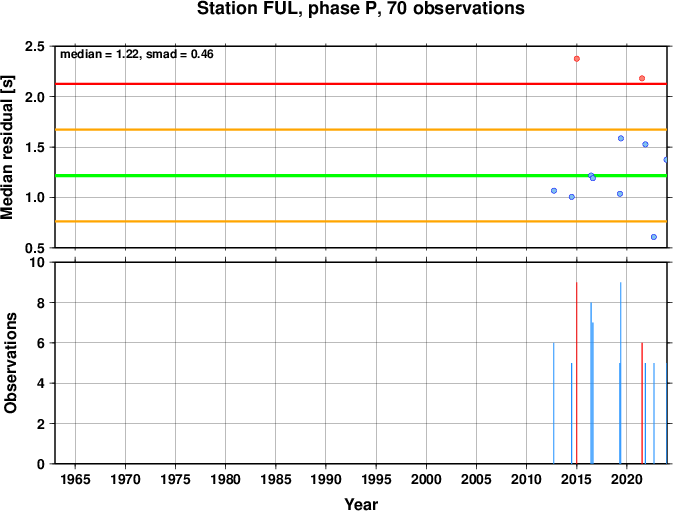

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

opened 19731207
Updated coordinates, in WGS84

Data at the ISC for 48 years between 1974 and 2025.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

FUL    Funchal                                                       32.63330  -16.90000      58.0         25-08-1999 20-01-2011
       Madeira Islands,Portugal
