Station details:
================

Code: FVI
Latitude:  46.59658
Longitude:   12.78039
Elevation:  1024.0
Depth:
Name: Forni Avoltri
Region: Italy
Status:

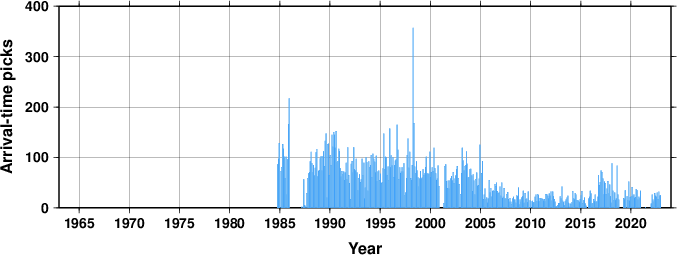

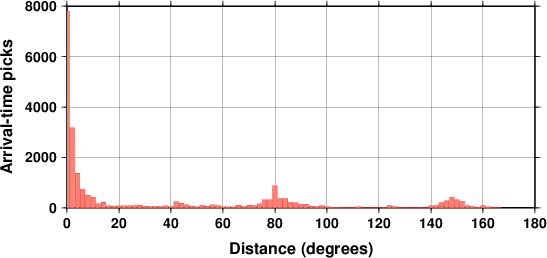

Arrival picks statistics
Travel Time Analysis

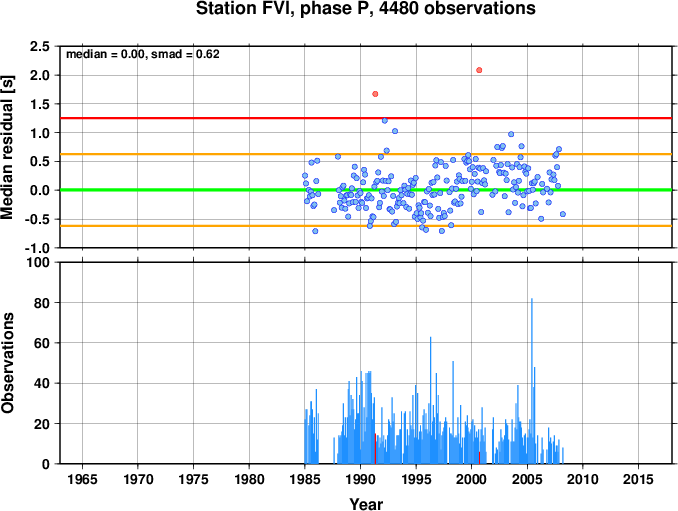

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

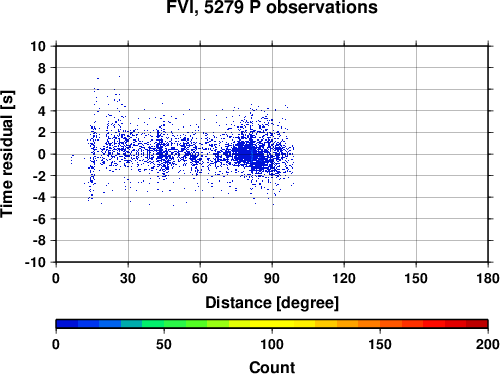

Travel time residuals


Station comments:
=================

Checked against station bulletin
opened 198410
Coords corrected slightly 20031007

Data at the ISC for 40 years between 1984 and 2024.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

FVI    Forni Avoltri                                                 46.59320   12.78090                   25-08-1999 25-08-1999
       Italy
