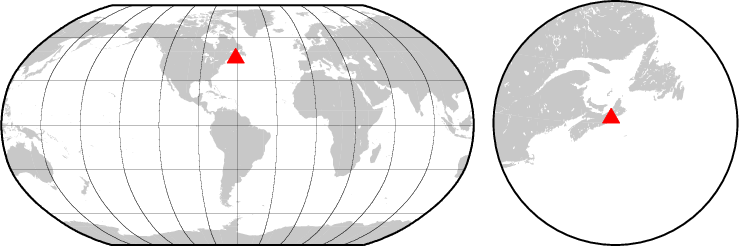

Station details:
================

Code: GBN
Latitude:  45.40775
Longitude:  -61.51283
Elevation:    38.0
Depth:
Name: Guysborough
Region: Nova Scotia,Canada
Status:

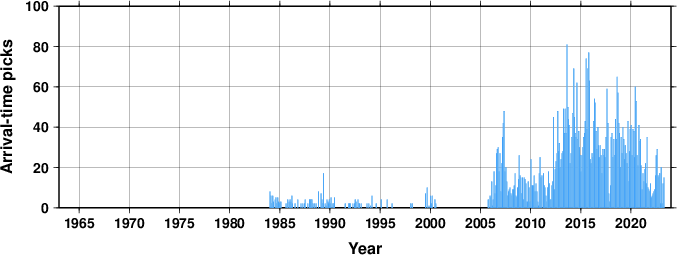

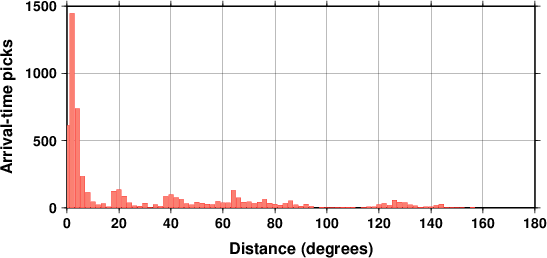

Arrival picks statistics
Travel Time Analysis

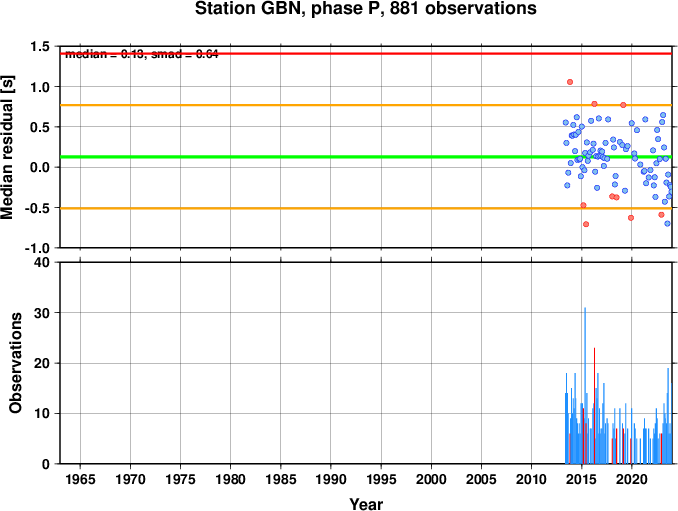

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

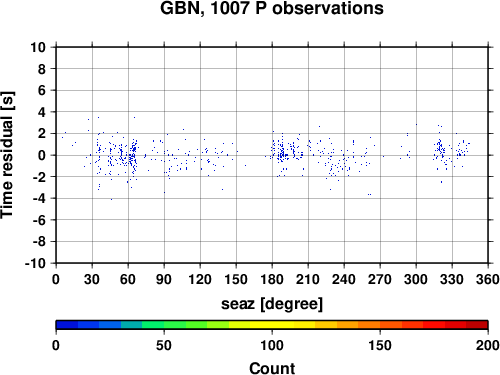

Travel time residuals


Station comments:
=================

opened 19830503
Closed analog station/re-opened 40ft away as BB on 17/10/05

Data at the ISC for 36 years between 1984 and 2024.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

GBN    Guysborough                                                   45.40700  -61.51300      38.0         25-08-1999 19-10-2005
       Nova Scotia,Canada
