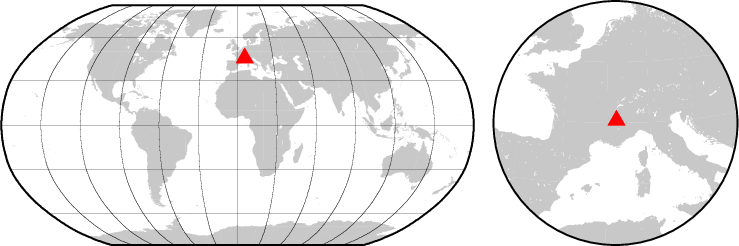

Station details:
================

Code: GDM
Latitude:  45.20380
Longitude:    6.11630
Elevation:  1574.0
Depth:
Name: Grand'Maison
Region: Rhone-Alpes,France
Status:

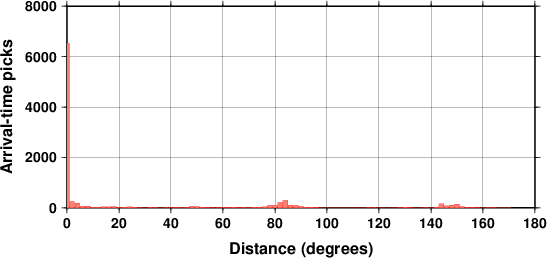

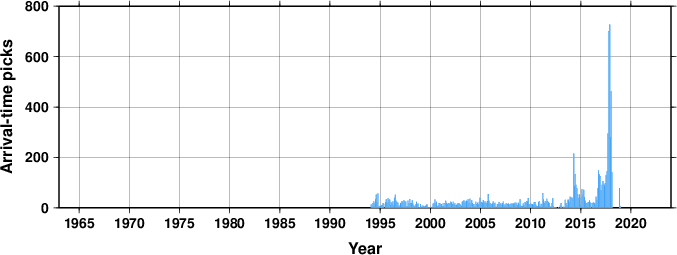

Arrival picks statistics
Travel Time Analysis

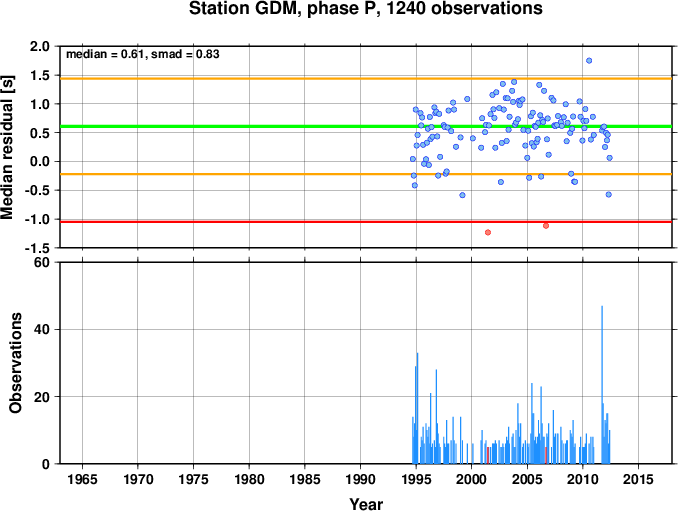

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

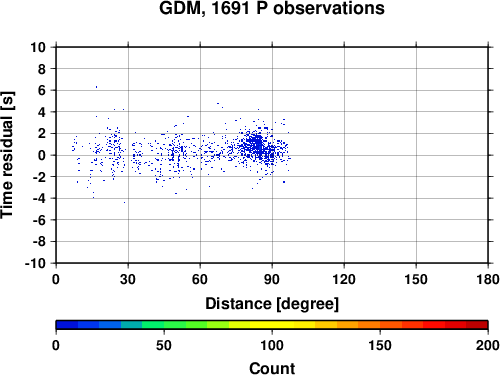

Travel time residuals


Station comments:
=================

ReNaSS station
GRN code OGGM
Updated lat/lon
GDM closed on 28/06/2012. However, OGGM still operating at this site

Data at the ISC for 25 years between 1994 and 2018.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

GDM    Grand'Maison                                                  45.20390    6.11611    1574.0         25-08-1999 20-02-2006
       Rhone-Alpes,France
