Station details:
================

Code: GEA0
Latitude:  48.83681
Longitude:   13.70189
Elevation:  1027.6
Depth:
Name: GERESS Array Site A0
Region: Bayern,Germany
Status:

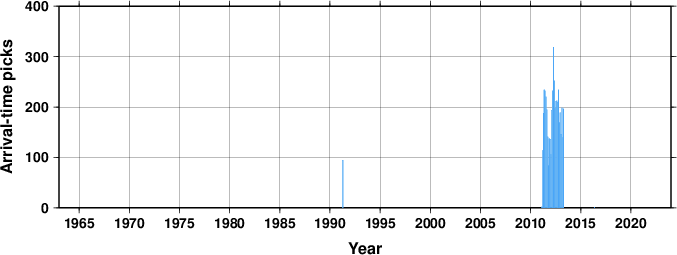

Arrival picks statistics
Travel Time Analysis

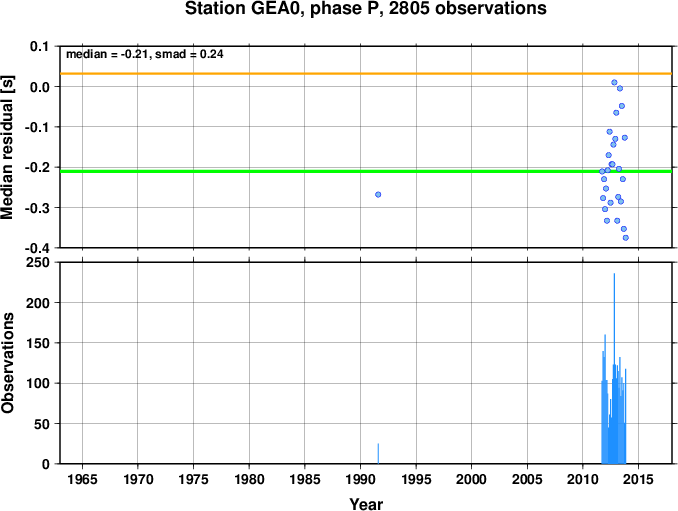

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

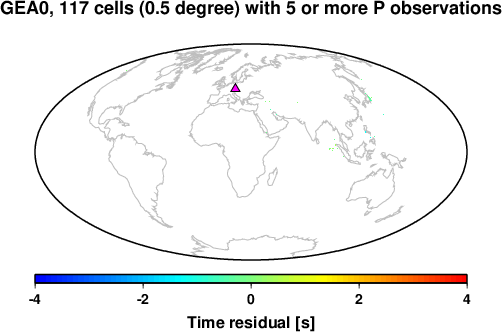

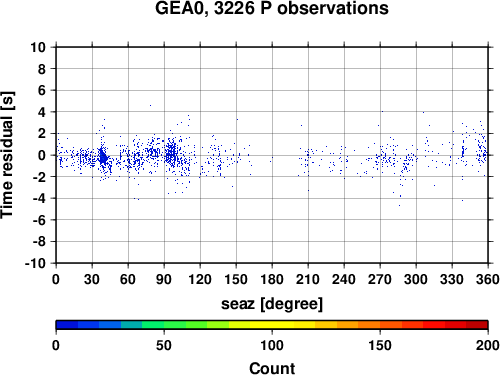

Travel time residuals


Station comments:
=================

opened 1990?
BUG 1994-19970101
BGRD opened 19970101

Data at the ISC for 5 years between 1991 and 2016.
