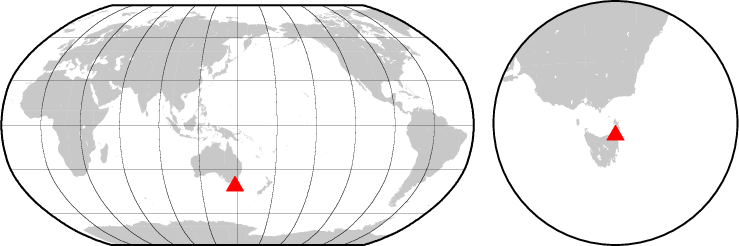

Station details:
================

Code: GLAD
Latitude: -40.98444
Longitude:  148.00861
Elevation:   146.0
Depth:
Name: Gladstone
Region: Tasmania,Australia
Status:

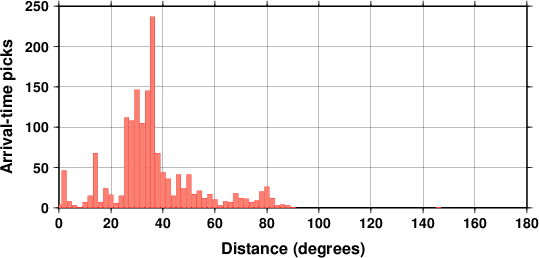

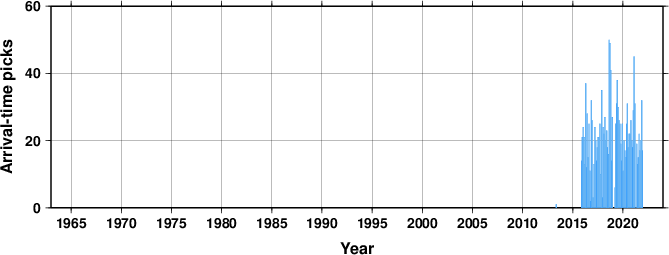

Arrival picks statistics
Travel Time Analysis

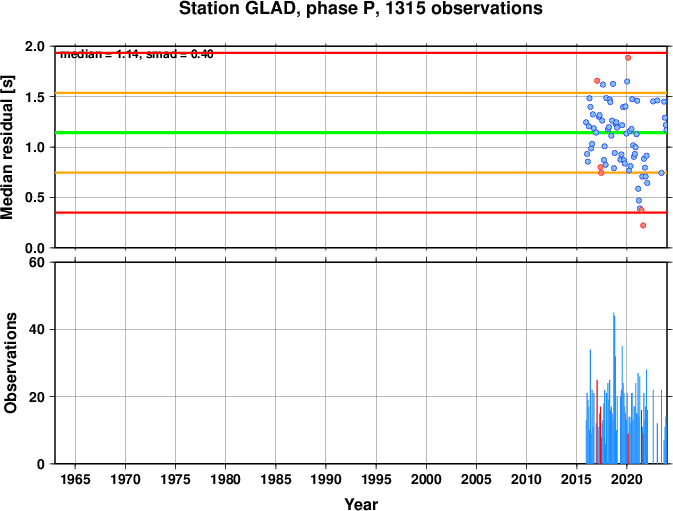

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

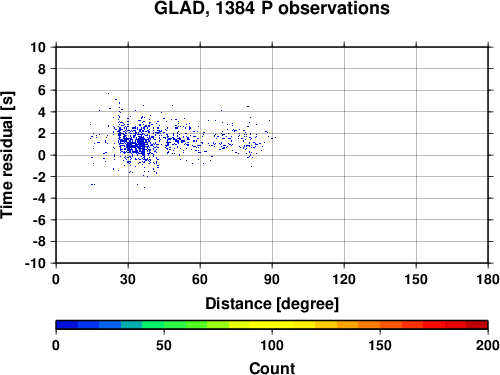

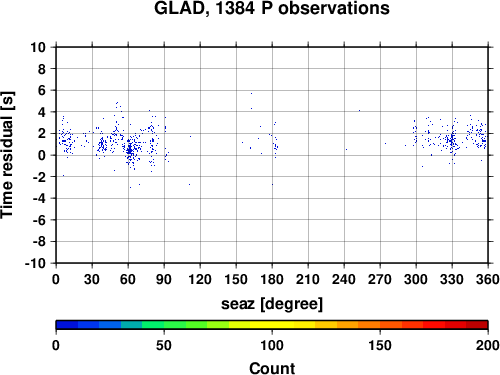

Travel time residuals


Station comments:
=================

opened 1967

Data at the ISC for 10 years between 2013 and 2024.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

GLAD   Gladstone                                                    -40.98444  148.00861     146.0         03-03-2000 03-09-2010
       Tasmania,Australia
