Station details:
================

Code: GLP
Latitude:  40.28890
Longitude:   30.30940
Elevation:   560.0
Depth:
Name: Golpazari
Region: Turkey
Status:


GLP is an alternative code for GPA

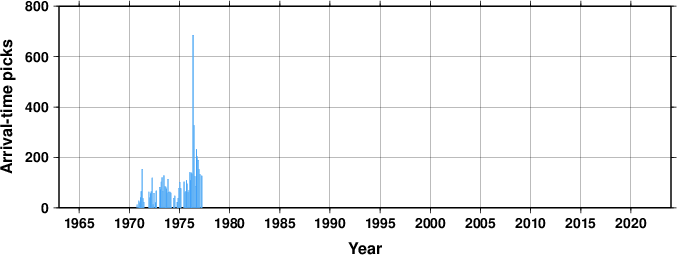

Arrival picks statistics
Travel Time Analysis

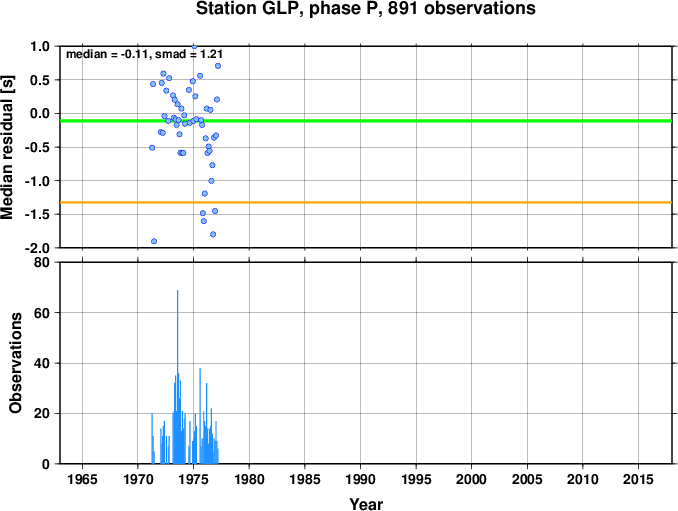

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

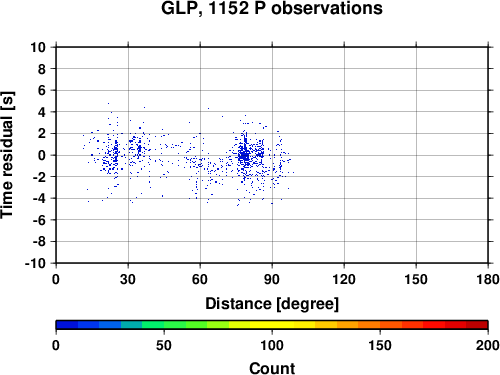

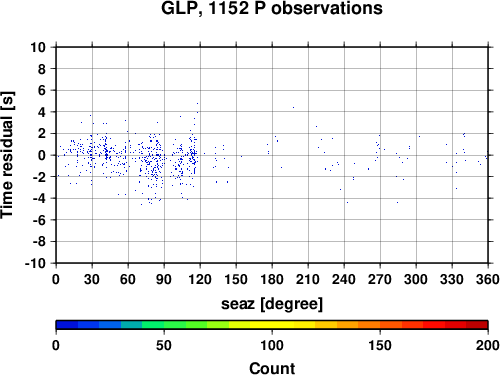

Travel time residuals


Station comments:
=================

Checked against station bulletin
XC1R2-HBG-RWM

Data at the ISC for 10 years between 1970 and 1981.
