Station details:
================

Code: GOPC
Latitude:  49.91400
Longitude:   14.78700
Elevation:   544.5
Depth:    60.0
Name: GO Pecny, Ondrejov, Czech Republic
Region: Czech Republic
Status:

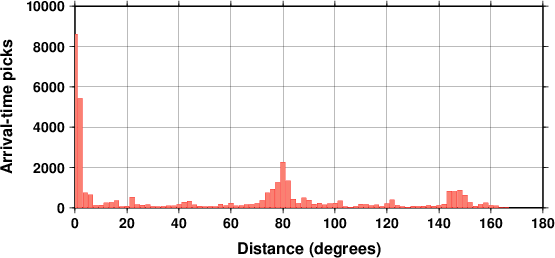

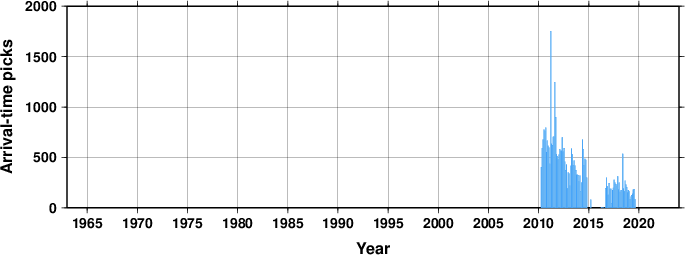

Arrival picks statistics
Travel Time Analysis

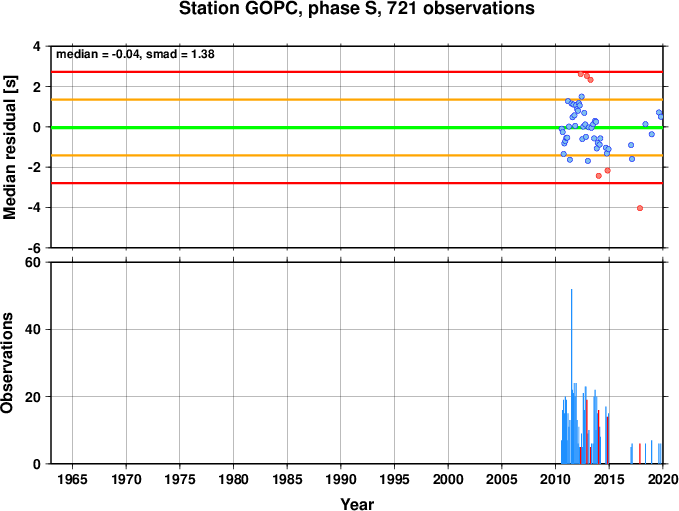

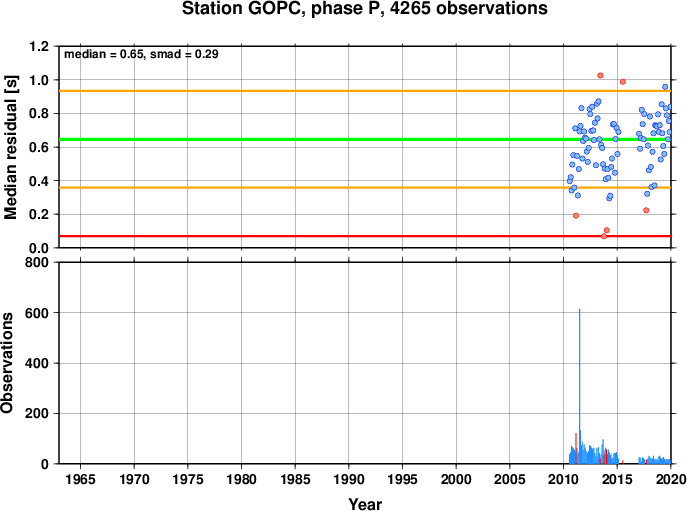

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

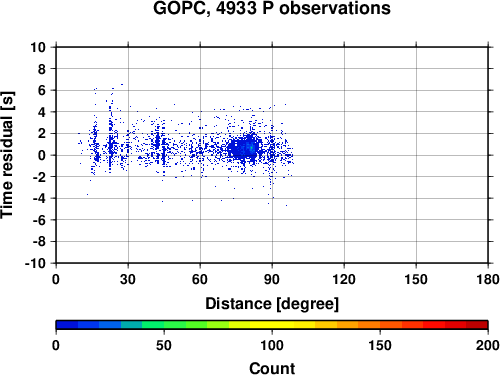

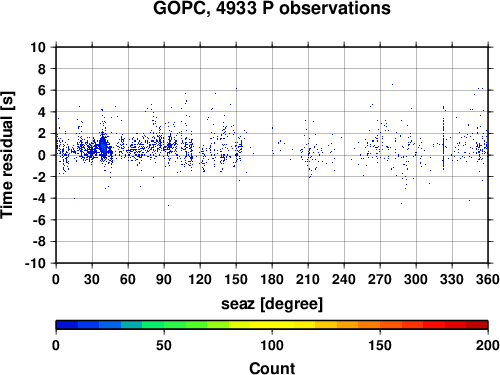

Travel time residuals


Station comments:
=================

Guralp CMG-3TD

Data at the ISC for 10 years between 2010 and 2019.
