Station details:
================

Code: GRBF
Latitude:  42.84130
Longitude:    1.53670
Elevation:   878.0
Depth:
Name: Gourbit
Region: Midi-Pyrenees,France
Status:

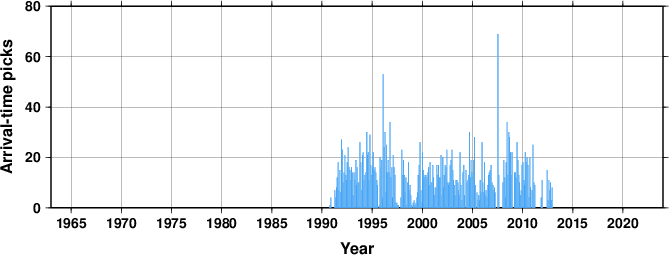

Arrival picks statistics
Travel Time Analysis

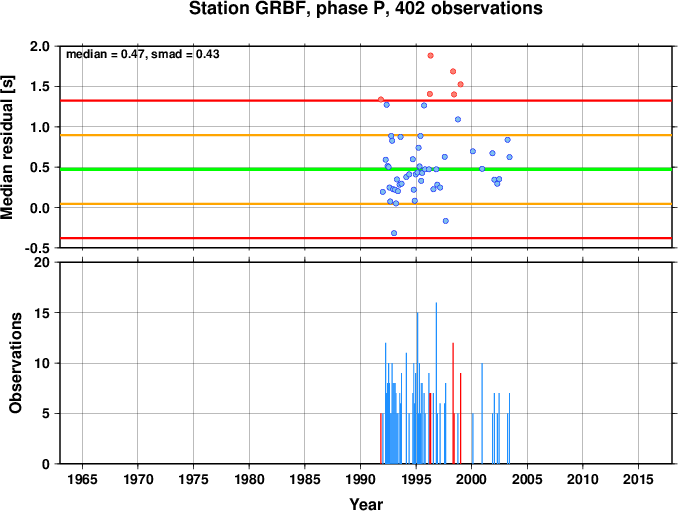

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

opened 198901
ReNaSS station
Updated lat/lon/elev

Data at the ISC for 23 years between 1990 and 2012.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

GRBF   Gourbit                                                       42.84140    1.53667     875.0         25-08-1999 20-02-2006
       Midi-Pyrenees,France
