Station details:
================

Code: GRNL
Latitude:  38.10830
Longitude:   -8.56900
Elevation:   172.0
Depth:     2.0
Name: Grandola
Region: Portugal
Status:

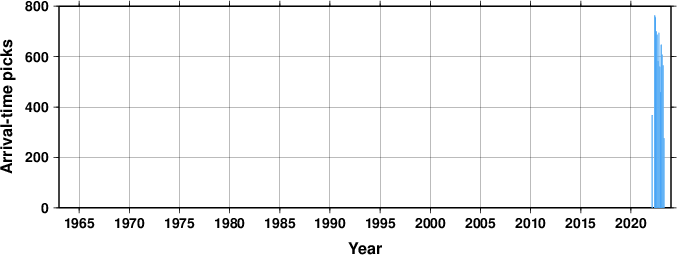

Arrival picks statistics
Travel Time Analysis

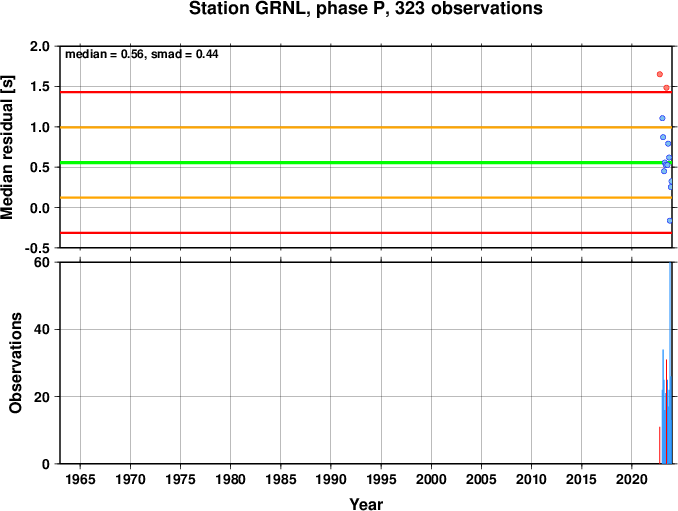

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

GURALP 3ESP-120s and Minimus Datalogger
GRNL belongs to the network LX from Instituto Dom Luiz (IDL) - Faculdade de Ciencias da Universidade de Lisboa.

Data at the ISC for 4 years between 2022 and 2025.
