Station details:
================

Code: GTTG
Latitude:  51.54515
Longitude:    9.96473
Elevation:   279.0
Depth:     0.0
Name: Gottingen
Region: Germany
Status:

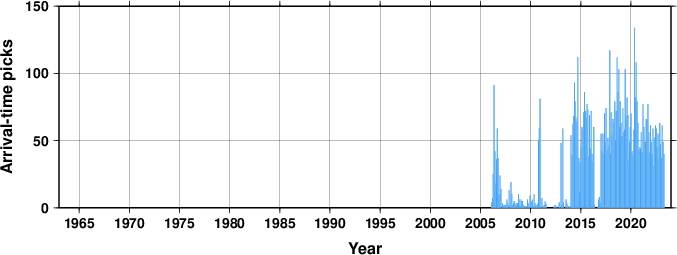

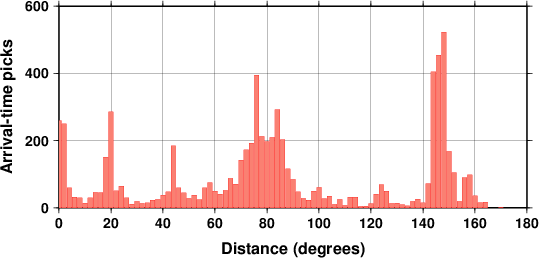

Arrival picks statistics
Travel Time Analysis

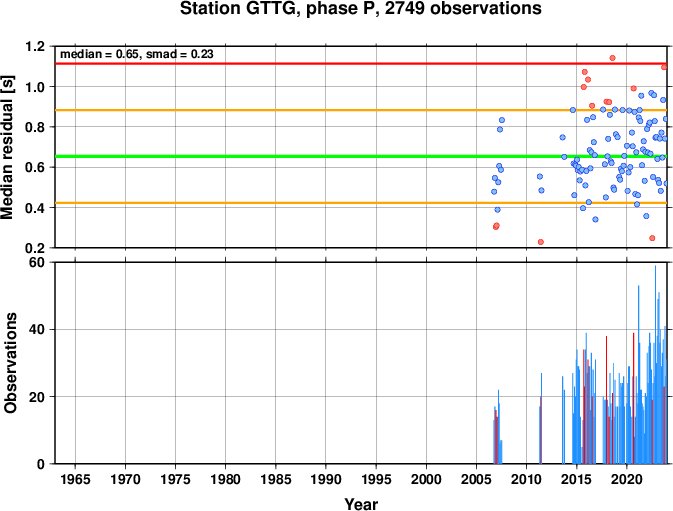

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

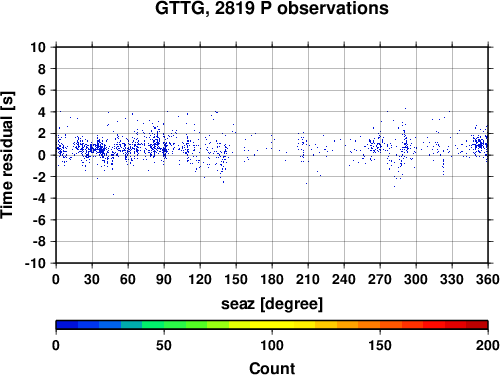

Travel time residuals


Station comments:
=================

GTT was closed 17 June 2005. It was in operation since Jan 1899! The new
station GTTG is about 10 meters from GTT.

Data at the ISC for 19 years between 2006 and 2024.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

GTTG   Gvttingen                                                     51.54500    9.96500     279.0     0.0 14-12-2006 19-12-2006
       Germany
