Station details:
================

Code: GUD
Latitude:  40.64300
Longitude:   -4.15397
Elevation:  1393.0
Depth:
Name: Guadarrama
Region: Spain
Status:

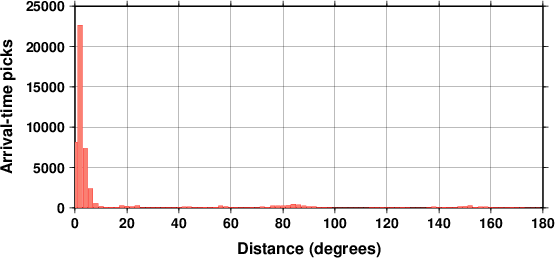

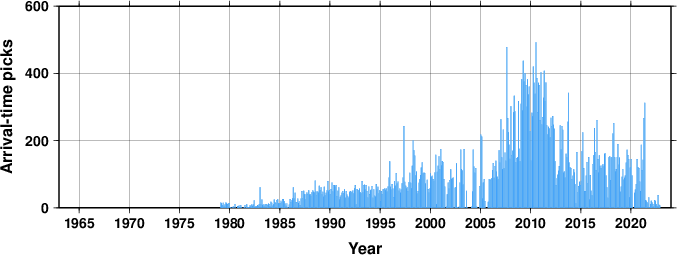

Arrival picks statistics
Travel Time Analysis

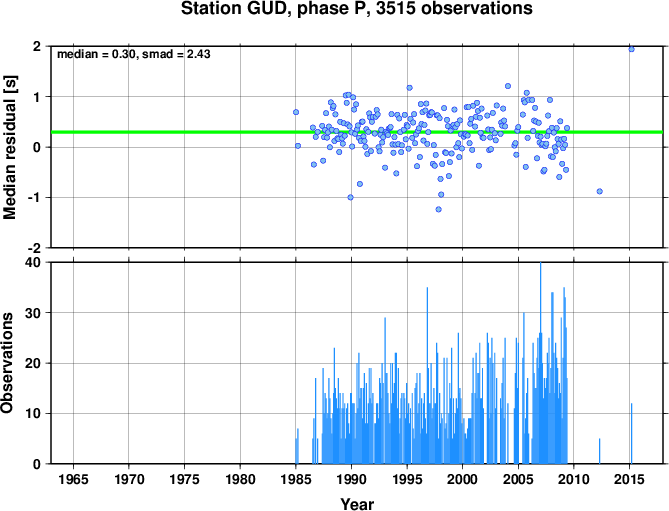

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

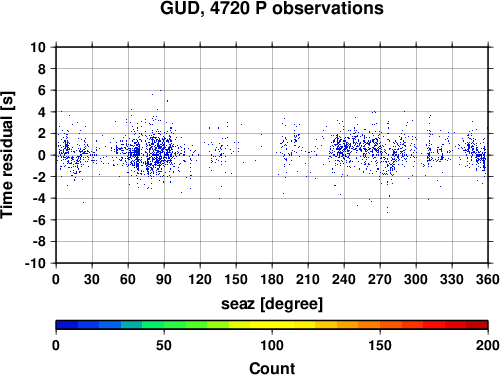

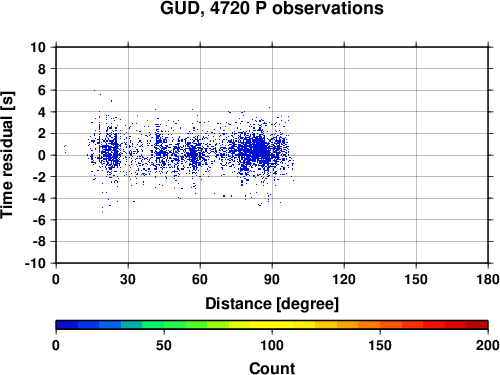

Travel time residuals

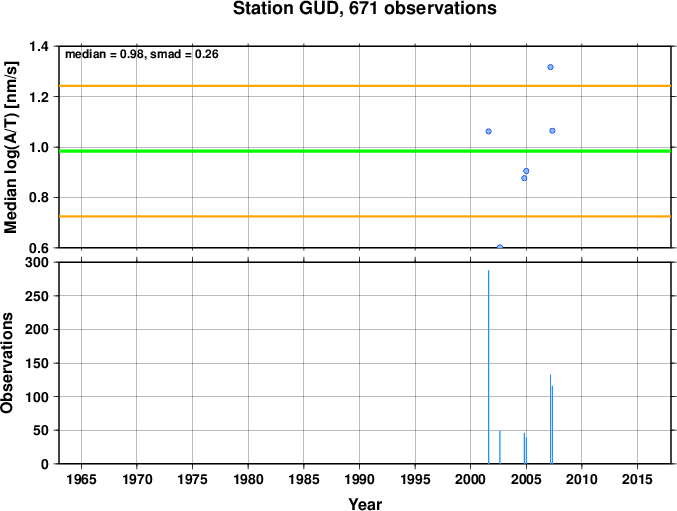

Amplitude analysis
 On the top graph every dot represents the median value for that month of data.
The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line (if present) shows twice the standard deviation (2 * smad).
The bottom graph shows the number of observations for each month. Any red columns show those observations whose monthly median value is greater than twice the standard deviation (2 * smad) from the overall (running) median (shown in the top graph by red dots).

Red dots indicate a possible calibration error.


Station comments:
=================

opened 197907

Data at the ISC for 47 years between 1979 and 2025.
