Station details:
================

Code: GWY
Latitude:  36.18600
Longitude: -116.66889
Elevation:  1556.0
Depth:
Name: Greenwater Valley
Region: California,U.S.A.
Status:

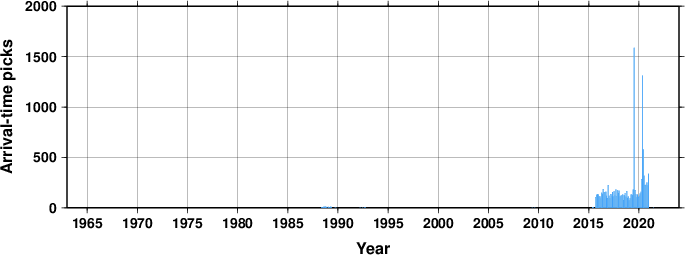

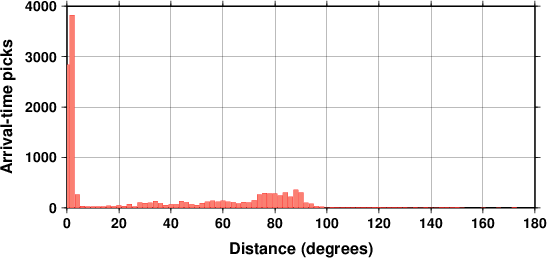

Arrival picks statistics
Travel Time Analysis

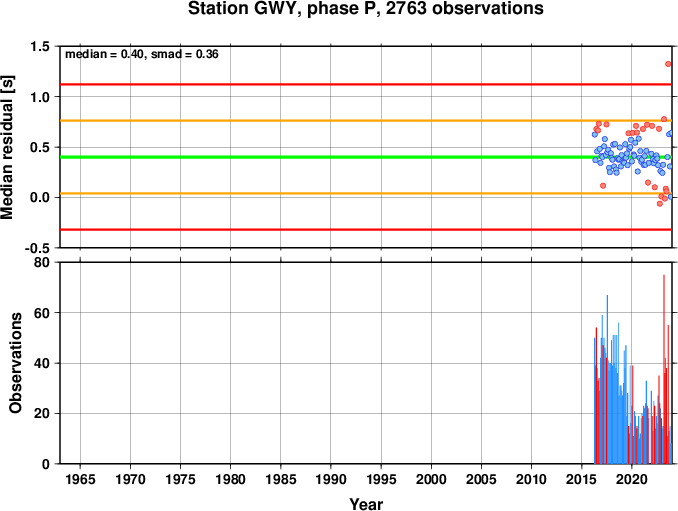

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.
Travel time residuals


Station comments:
=================

Greenwater Valley
USGS 19880401-19921001
REN opened 19921001
Coords corrected slightly 20021207

Data at the ISC for 11 years between 1988 and 2021.
