Station details:
================

Code: H08S3

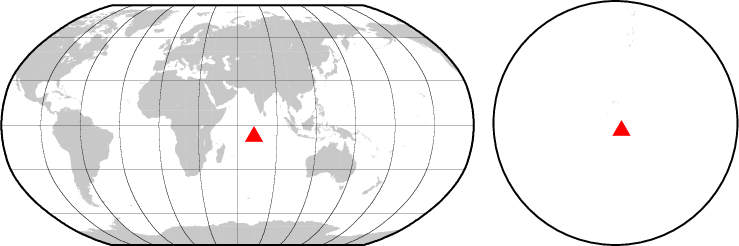

Latitude:  -7.62750
Longitude:   72.48380
Elevation: -1776.0
Depth:  1359.0
Name: Diego Garcia HYDROACOUSTIC SITE S3
Region: Chagos Archipelago
Status:

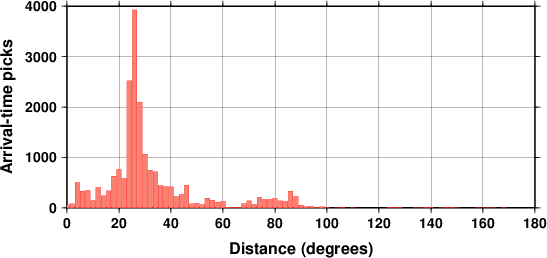

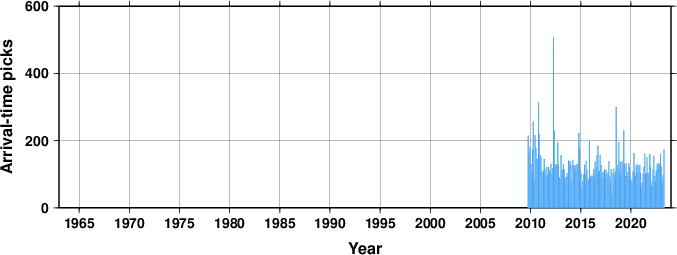

Arrival picks statistics

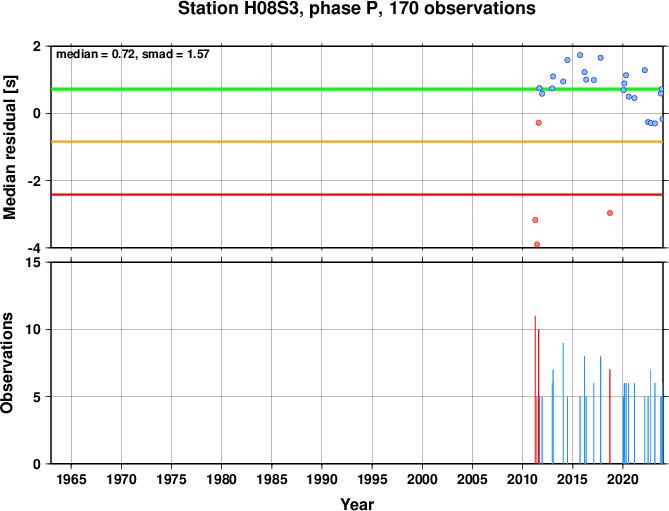

Travel Time Analysis
On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================


Data at the ISC for 17 years between 2009 and 2025.
