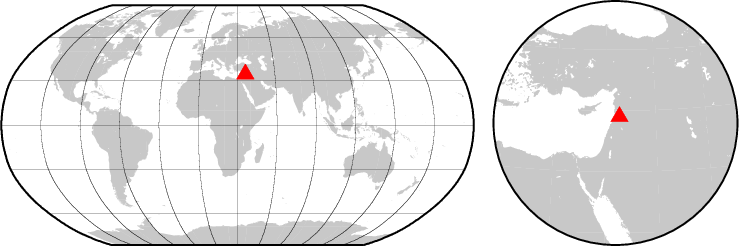

Station details:
================

Code: HAWK
Latitude:  34.52111
Longitude:   36.40550
Elevation:  1000.0
Depth:
Name: Haweek
Region: Syria
Status:


Arrival picks statistics
Travel Time Analysis

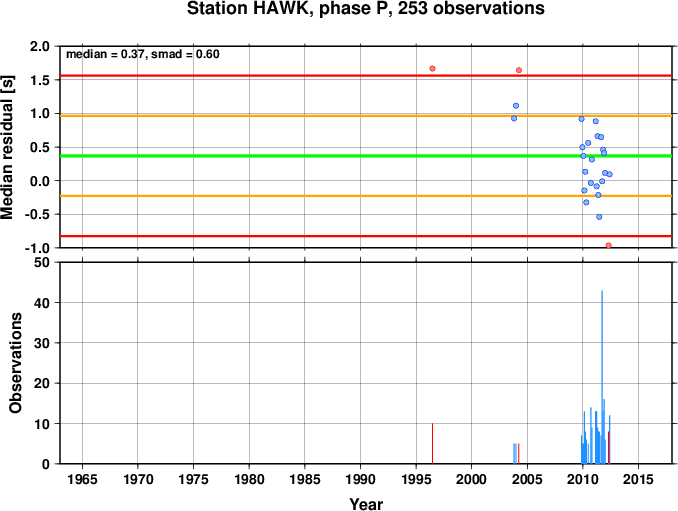

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

opened 199509
gps update

Data at the ISC for 12 years between 1995 and 2011.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

HAWK   Haweek                                                        34.51667   36.40531     895.0         25-08-1999 21-02-2005
       Syria
