Station details:
================

Code: HCY
Latitude:  42.44730
Longitude:   18.49380
Elevation:   321.0
Depth:
Name: Herceg Novi
Region: Montenegro
Status:

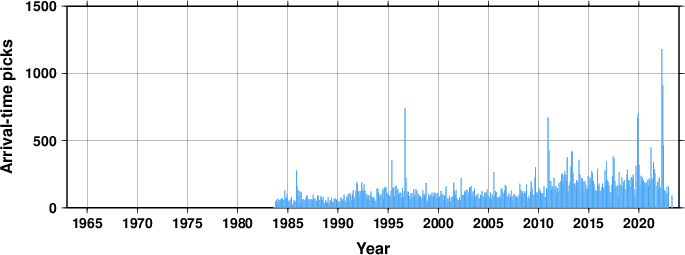

Arrival picks statistics
Travel Time Analysis

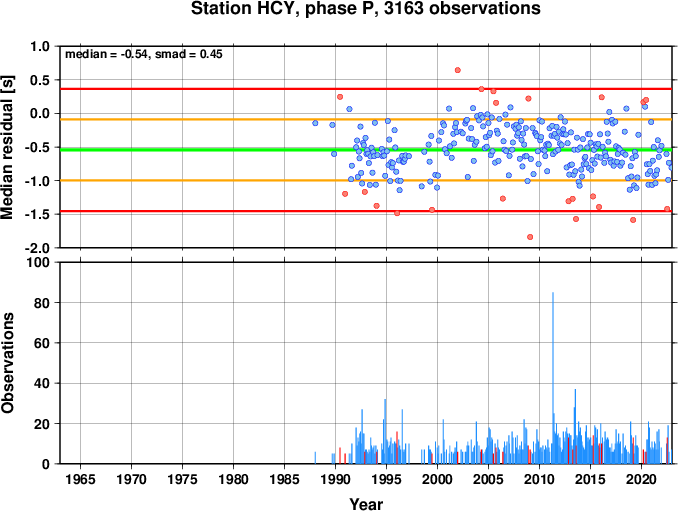

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

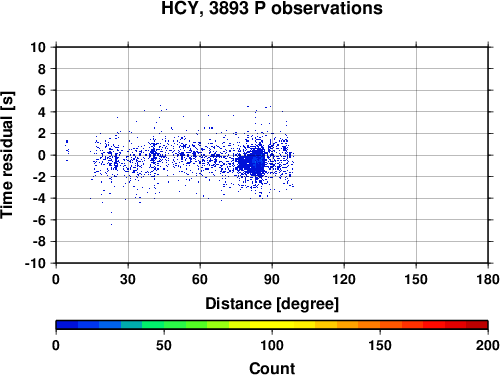

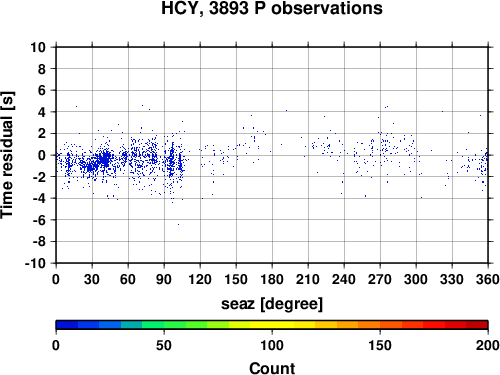

Travel time residuals


Station comments:
=================

opened 19821225
Updated WGS coordinates received November 2010

Data at the ISC for 42 years between 1983 and 2024.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

HCY    Herceg Novi                                                   42.44750   18.49840     273.0         25-08-1999 19-11-2010
       Montenegro
