Station details:
================

Code: HDH
Latitude:  48.58315
Longitude:   10.20478
Elevation:   516.0
Depth:    12.0
Name: Heidenheim-Charlottenhoehle
Region: Baden-Wurttemberg,Germany
Status:

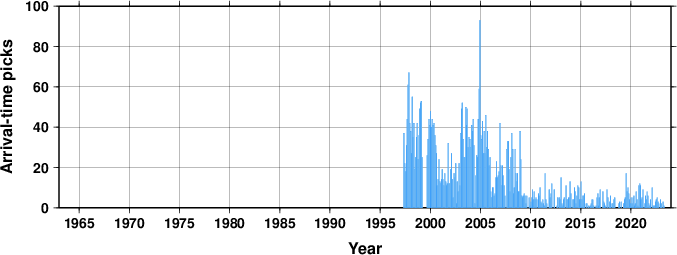

Arrival picks statistics
Travel Time Analysis

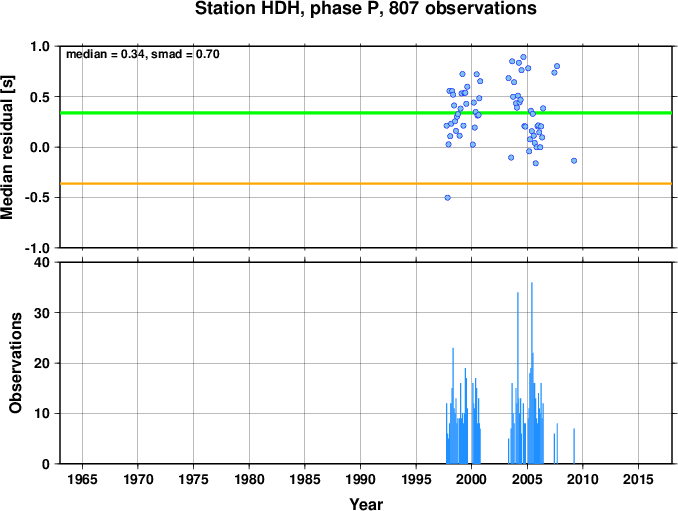

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

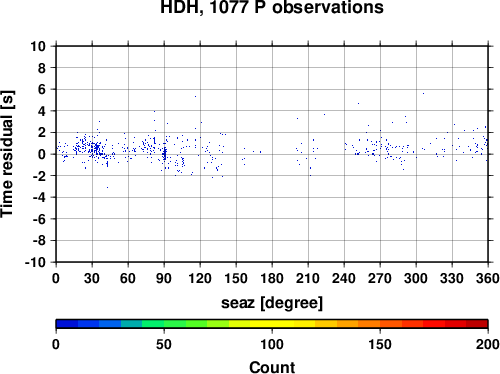

Travel time residuals


Station comments:
=================

LEDBW opened 1996

Data at the ISC for 29 years between 1997 and 2025.
