Station details:
================

Code: HRI
Latitude:  33.26600
Longitude:   35.73400
Elevation:  1015.0
Depth:
Name: Mount Hermon
Region: Israel
Status:

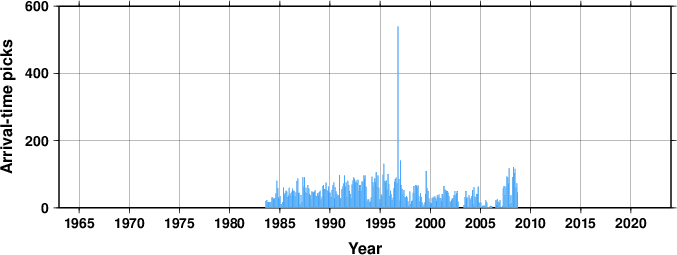

Arrival picks statistics
Travel Time Analysis

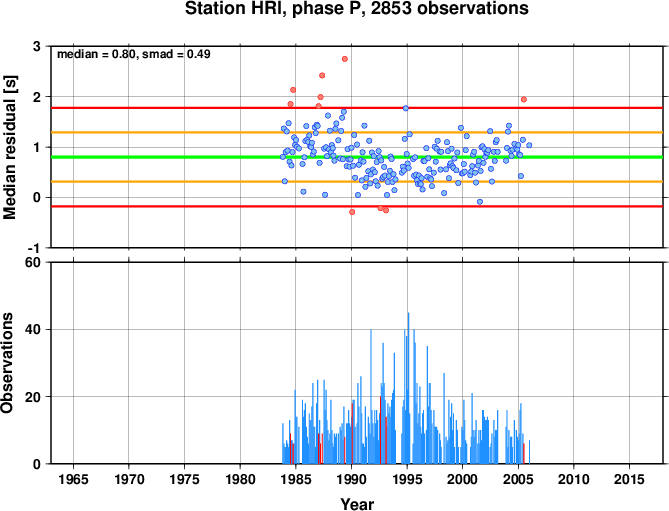

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.
Travel time residuals


Station comments:
=================

Checked against station bulletin
opened 198307
Coords corrected slightly 20010705

Data at the ISC for 26 years between 1983 and 2008.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

HRI    Mt Hermon                                                     33.27000   35.74000    1060.0         25-08-1999 25-08-1999
       Israel
