Station details:
================

Code: IANJ
Latitude:  35.46720
Longitude:   53.91440
Elevation:  2135.0
Depth:
Name: Anjilo
Region: Iran
Status:

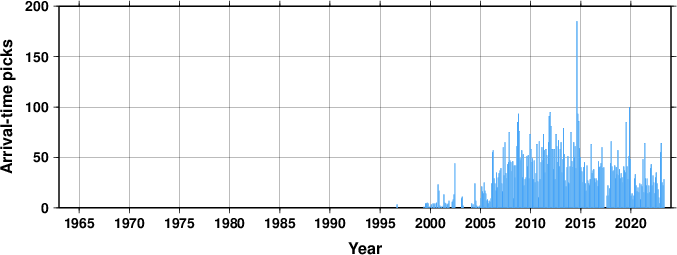

Arrival picks statistics
Travel Time Analysis

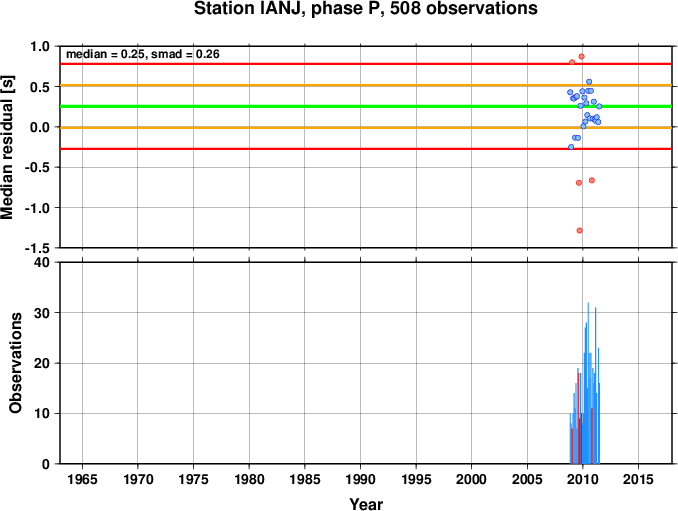

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

Network is TEH - Subnetwork is Semnan

Data at the ISC for 26 years between 1996 and 2023.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

IANJ   Anjiloo                                                       35.46720   53.91440    1100.0         01-03-2005 19-05-2009
       Iran
