Station details:
================

Code: ICMP
Latitude:  17.88630
Longitude:  -66.52670
Elevation:    10.0
Depth:     1.0
Name: Isla Caja de Muertos, Puerto Rico
Region: Puerto Rico
Status:

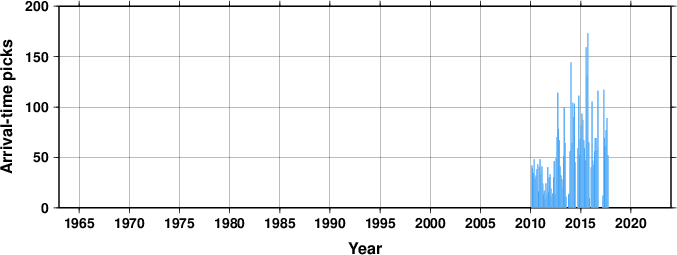

Arrival picks statistics
Travel Time Analysis

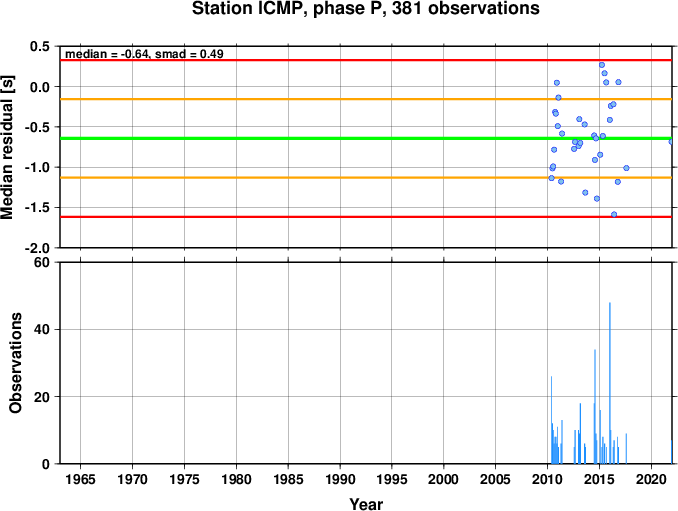

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

This station replace ICM which was closed back in jun/01/2009. This is a
new site.

Data at the ISC for 8 years between 2010 and 2017.
