Station details:
================

Code: IIO
Latitude:  19.59150
Longitude:  -98.72250
Elevation:  2940.0
Depth:
Name: Organos
Region: Tlaxcala,Mexico
Status:

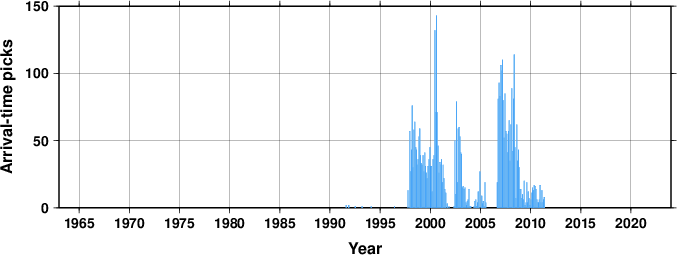

Arrival picks statistics
Travel Time Analysis

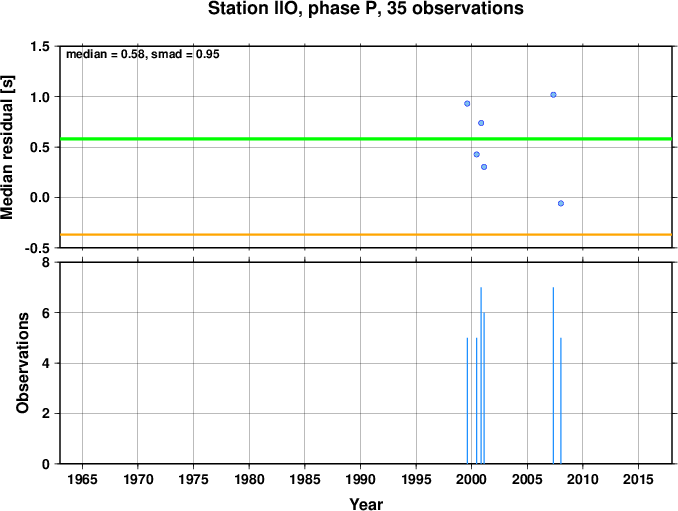

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

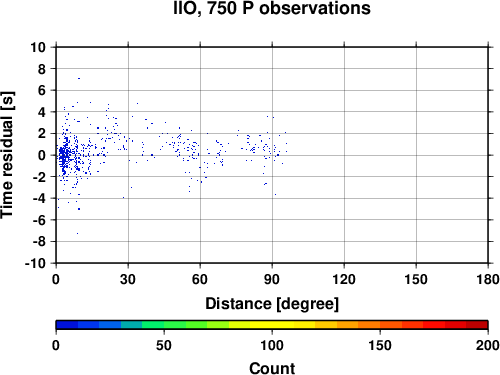

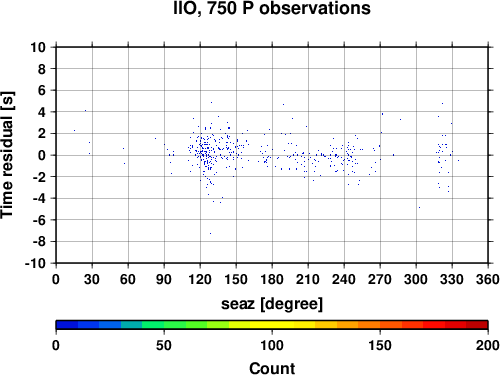

Travel time residuals


Station comments:
=================

RSVM code ORVM
RSVM closed 2001?
Coords corrected slightly 20010830

Data at the ISC for 20 years between 1991 and 2011.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

IIO    Organos                                                       19.59200  -98.72400    2850.0         25-08-1999 25-08-1999
       Tlaxcala
