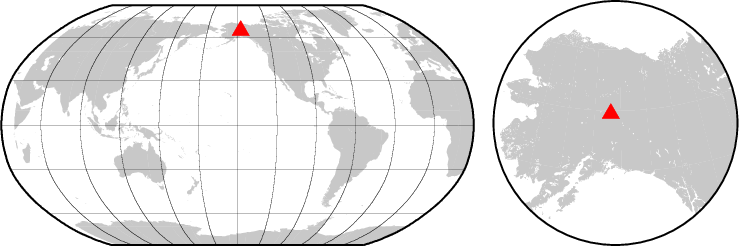

Station details:
================

Code: ILAR
Latitude:  64.77139
Longitude: -146.88661
Elevation:   419.0
Depth:
Name: Eielson Array Beam Reference Point
Region: Alaska,U.S.A.
Status:

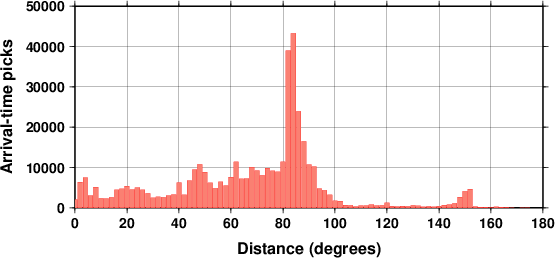

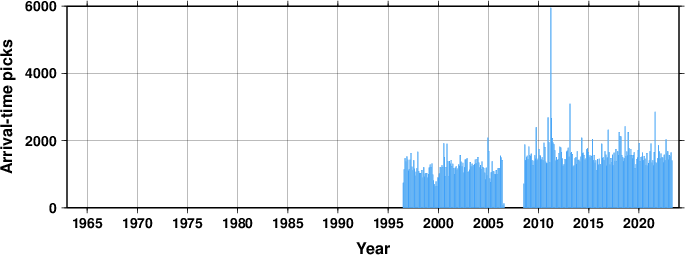

Arrival picks statistics

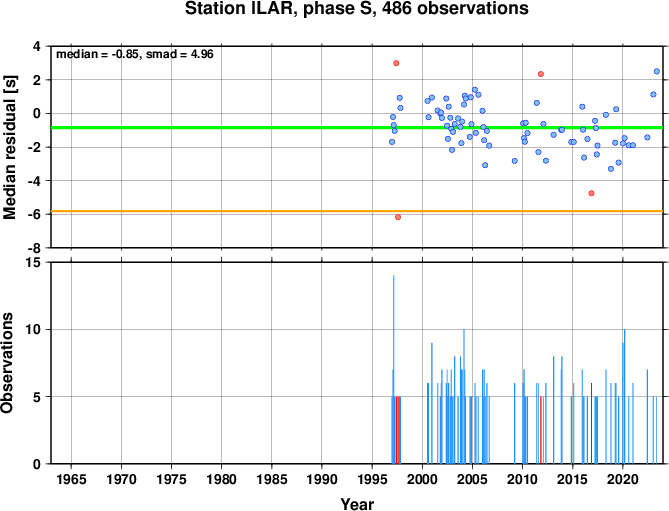

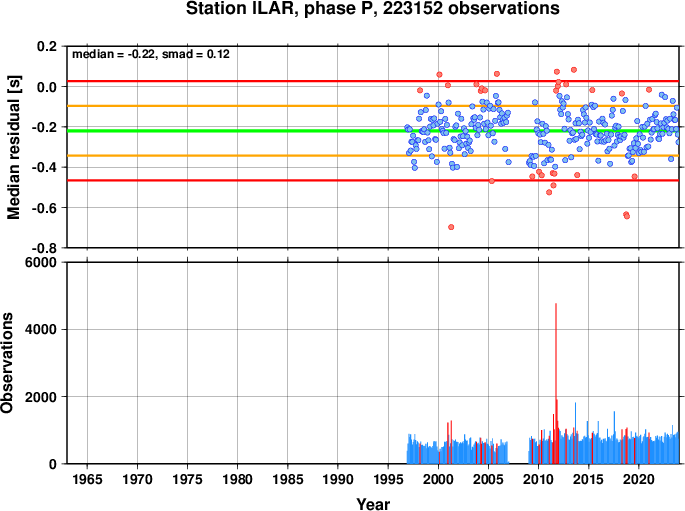

Travel Time Analysis
On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

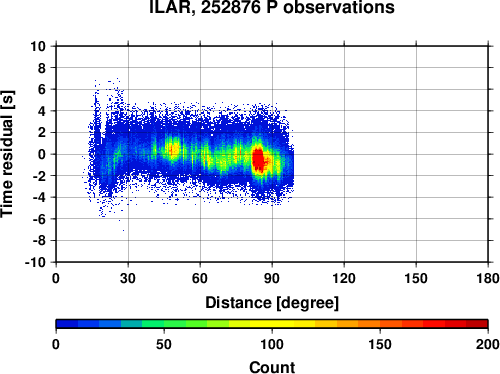

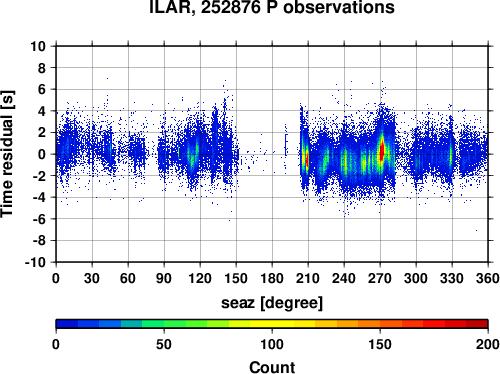

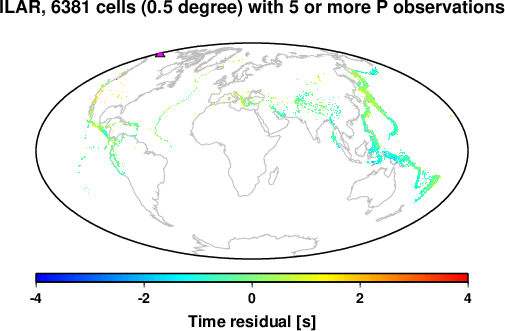

Travel time residuals

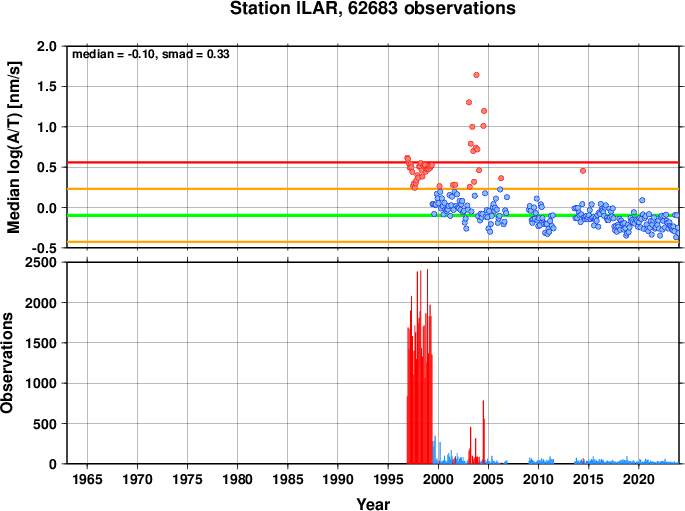

Amplitude analysis
 On the top graph every dot represents the median value for that month of data.
The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line (if present) shows twice the standard deviation (2 * smad).
The bottom graph shows the number of observations for each month. Any red columns show those observations whose monthly median value is greater than twice the standard deviation (2 * smad) from the overall (running) median (shown in the top graph by red dots).

Red dots indicate a possible calibration error.


Station comments:
=================

Eielson Array Beam Reference Point
opened 19660107

Data at the ISC for 29 years between 1996 and 2025.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

ILAR   Eielson Array                                                 64.77140 -146.88700     419.0         25-08-1999 25-08-1999
       Alaska and Aleutians
