Station details:
================

Code: ILB
Latitude:  64.77139
Longitude: -146.88661
Elevation:   419.0
Depth:
Name: Eielson Array Broadband
Region: Alaska,U.S.A.
Status:


ILB is an alternative code for ILAR

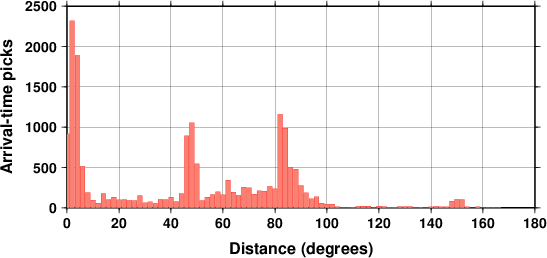

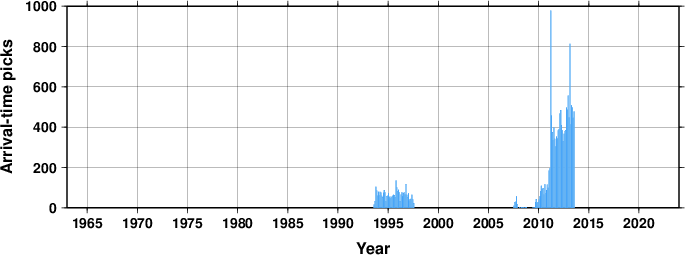

Arrival picks statistics
Travel Time Analysis

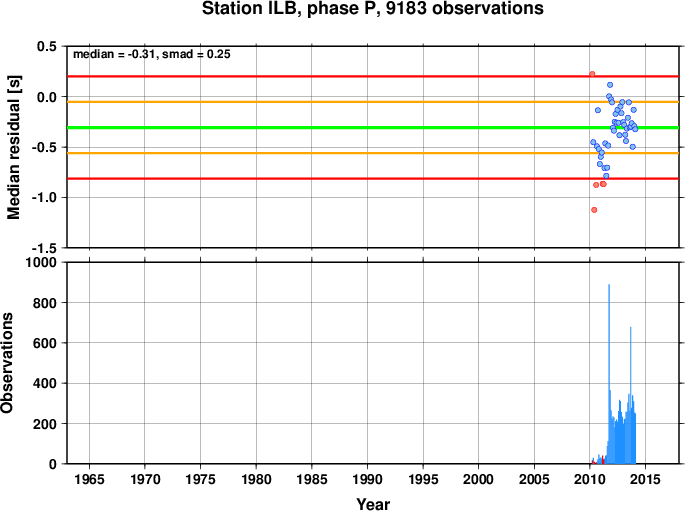

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

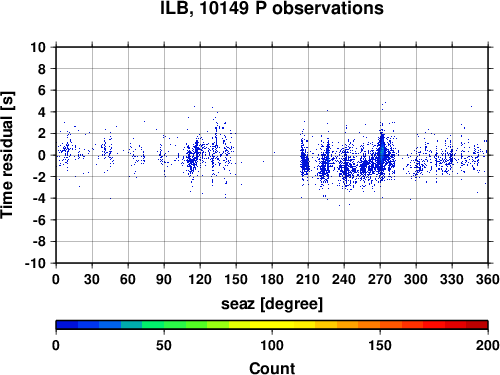

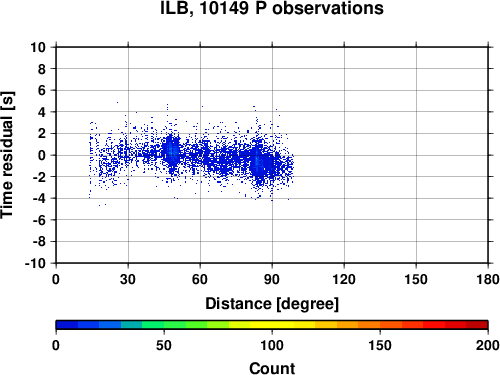

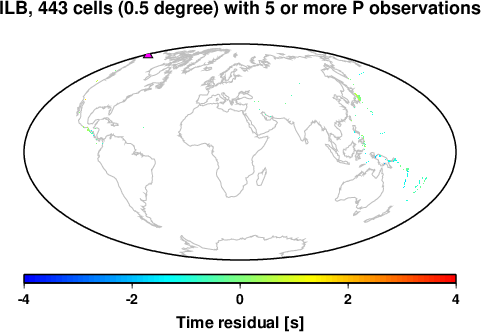

Travel time residuals


Station comments:
=================

Eielson Array Broadband
opened 19790920
GIA opened 199307

Data at the ISC for 12 years between 1993 and 2013.
