Station details:
================

Code: ILULI
Latitude:  69.21214
Longitude:  -51.10480
Elevation:    53.5
Depth:
Name: Ilulissat
Region: Greenland
Status:

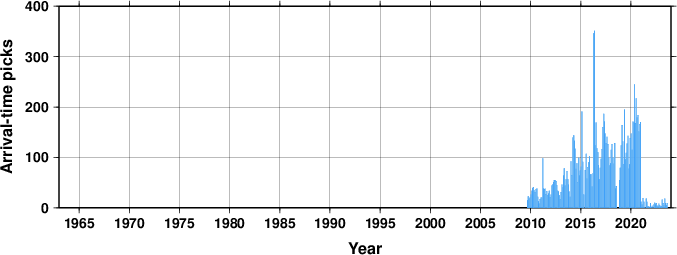

Arrival picks statistics

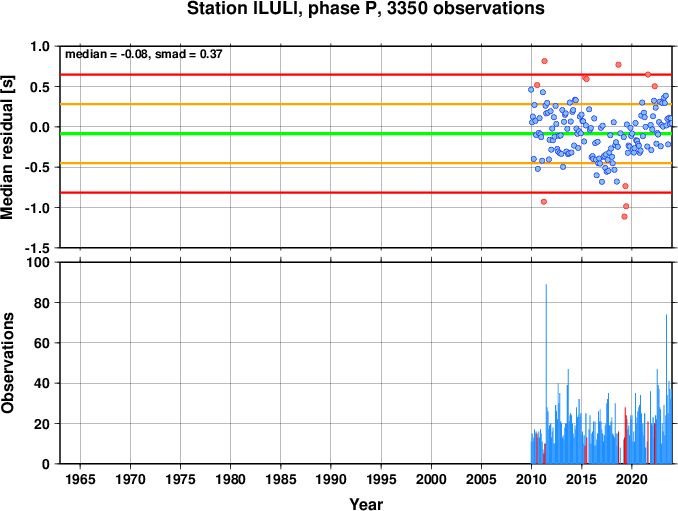

Travel Time Analysis
On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

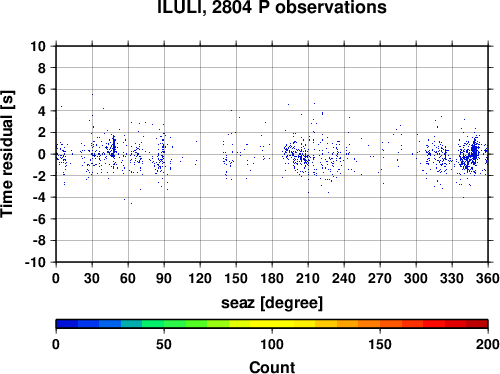

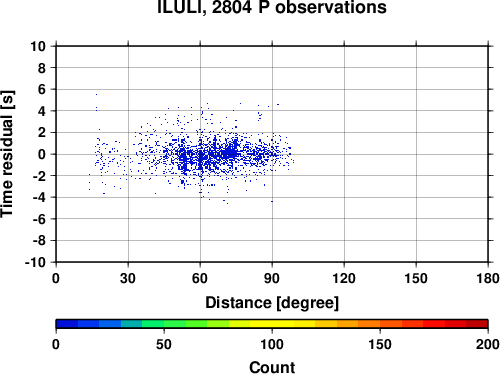

Travel time residuals

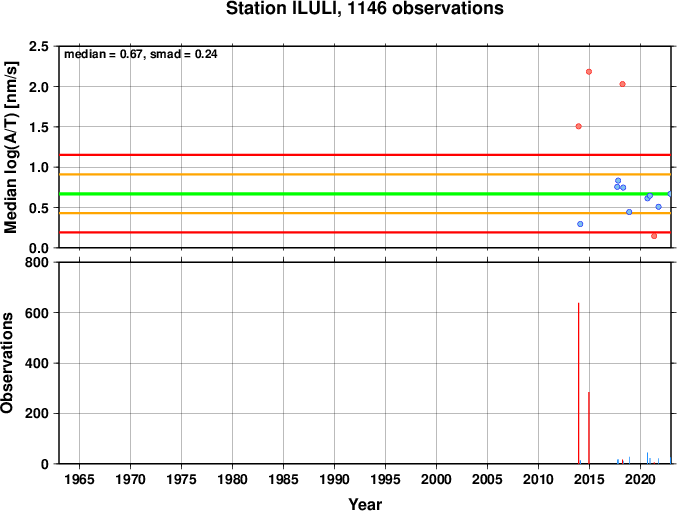

Amplitude analysis
 On the top graph every dot represents the median value for that month of data.
The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line (if present) shows twice the standard deviation (2 * smad).
The bottom graph shows the number of observations for each month. Any red columns show those observations whose monthly median value is greater than twice the standard deviation (2 * smad) from the overall (running) median (shown in the top graph by red dots).

Red dots indicate a possible calibration error.


Station comments:
=================

New station at new site approx.800metres from ILUG
Previous co-ordinates update incorrect

Data at the ISC for 16 years between 2009 and 2024.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

ILULI  Ilulissat                                                     69.21000  -51.11000       0.0                    10-08-2009
       Greenland

ILULI  Ilulissat                                                     69.21214   51.10480      53.5         10-08-2009 08-09-2009
       Greenland
