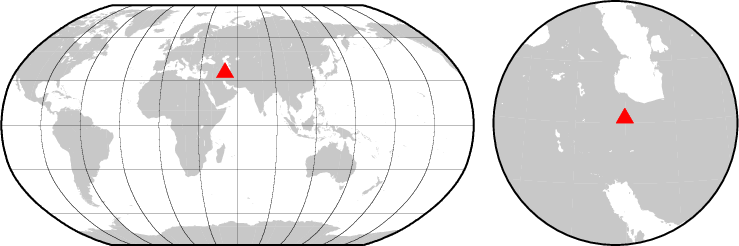

Station details:
================

Code: IRAZ
Latitude:  35.40460
Longitude:   49.92900
Elevation:  1950.0
Depth:
Name: Razeghan
Region: Iran
Status:

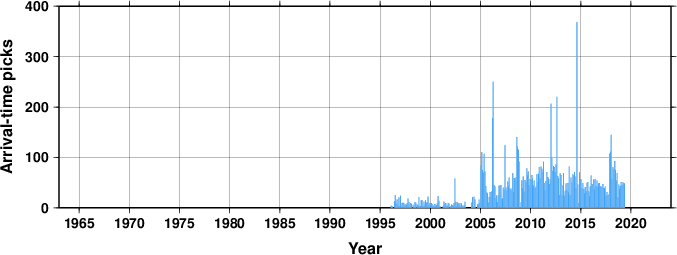

Arrival picks statistics
Travel Time Analysis

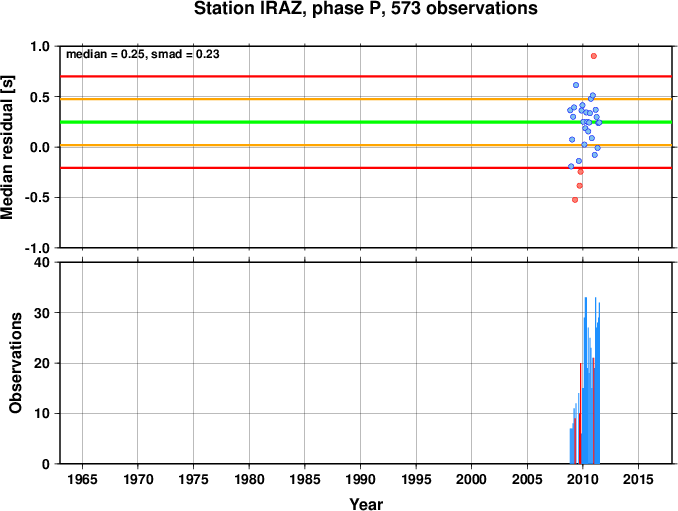

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

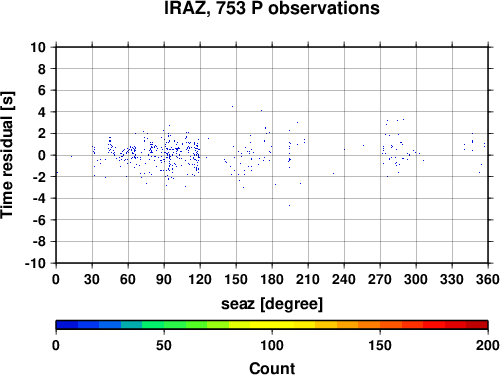

Travel time residuals


Station comments:
=================

Network is TEH - Subnetwork is Tehran

Data at the ISC for 24 years between 1996 and 2019.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

IRAZ   Razeghan                                                      35.40460   49.92900    1920.0         01-03-2005 19-05-2009
       Iran
