Station details:
================

Code: ISAD
Latitude:  31.91360
Longitude:   53.68550
Elevation:  2457.0
Depth:
Name: Sadrabad
Region: Iran
Status:

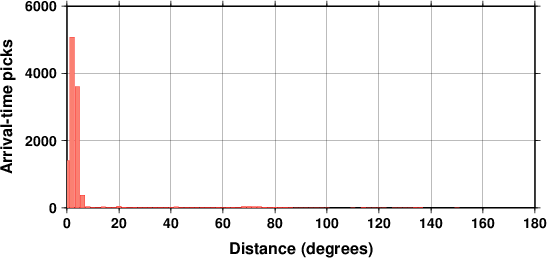

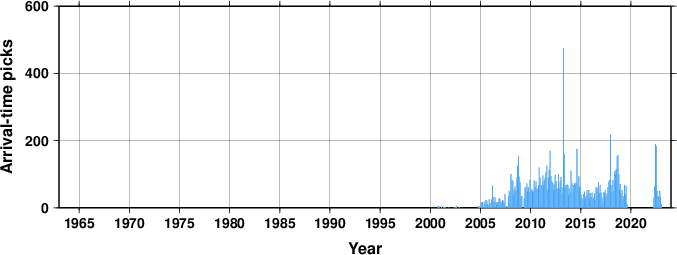

Arrival picks statistics
Travel Time Analysis

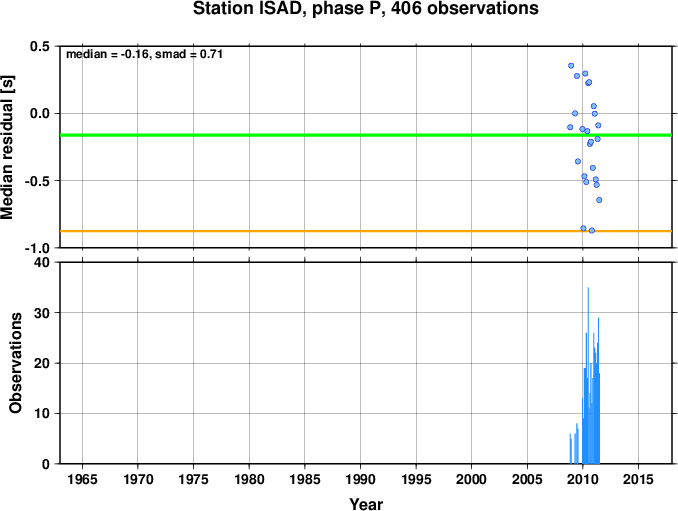

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

Network is TEH - Subnetwork is Yazd

Data at the ISC for 21 years between 2000 and 2023.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

ISAD   Sadrabad                                                      31.91360   53.68550    2150.0         01-03-2005 19-05-2009
       Iran
