Station details:
================

Code: ITAN
Latitude:  27.14455
Longitude:   93.72203
Elevation:   217.7
Depth:
Name: ITANAGAR
Region: Arunachal Pradesh,India
Status:

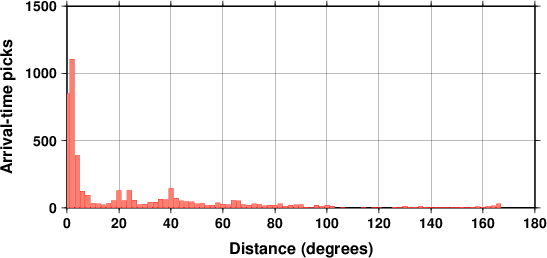

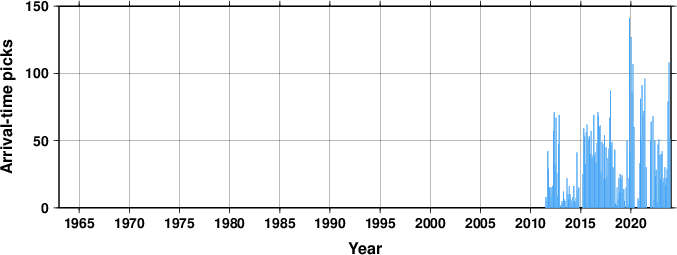

Arrival picks statistics
Travel Time Analysis

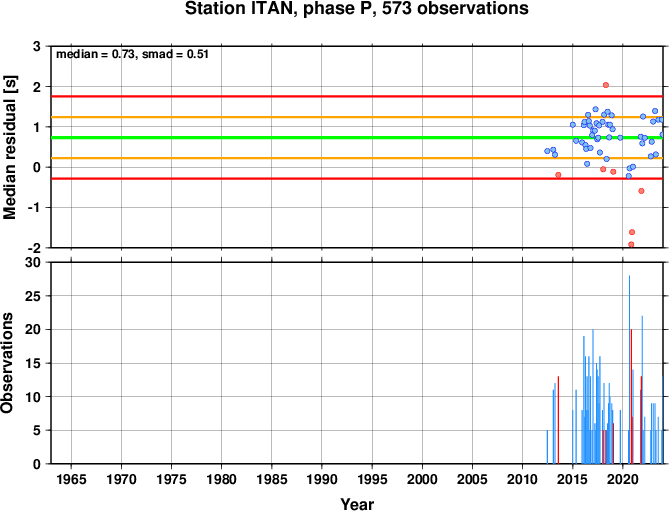

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

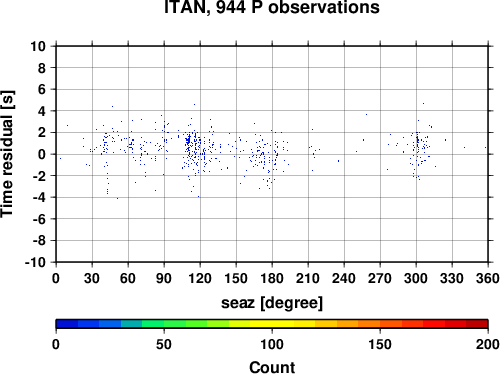

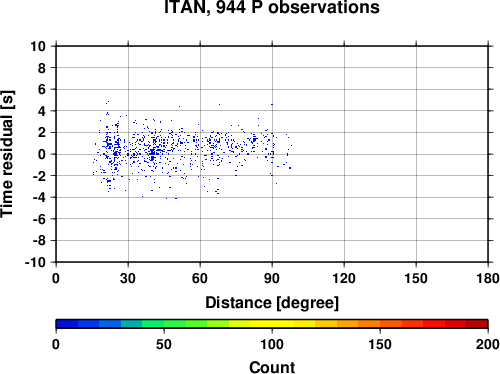

Travel time residuals


Station comments:
=================

Coordinates revised, changed on 2021-12-08, previously at 27.14460 93.72190 214.0

Data at the ISC for 13 years between 2011 and 2023.
