Station details:
================

Code: JOT
Latitude:  41.38200
Longitude:  141.04817
Elevation:    80.0
Depth:
Name: Ohata
Region: Aomori,Japan
Status:

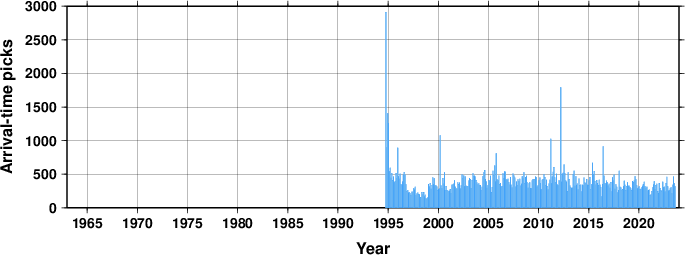

Arrival picks statistics
Travel Time Analysis

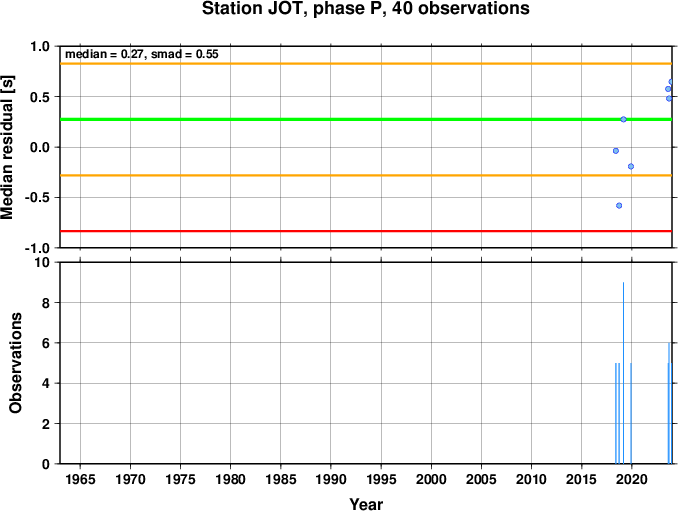

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

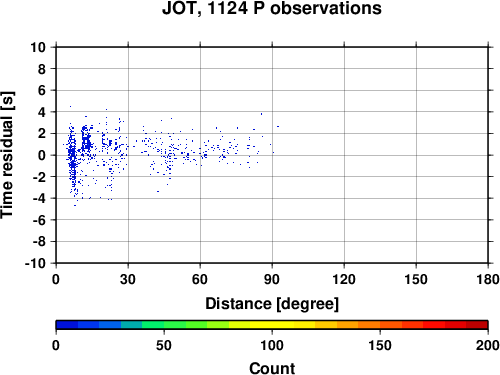

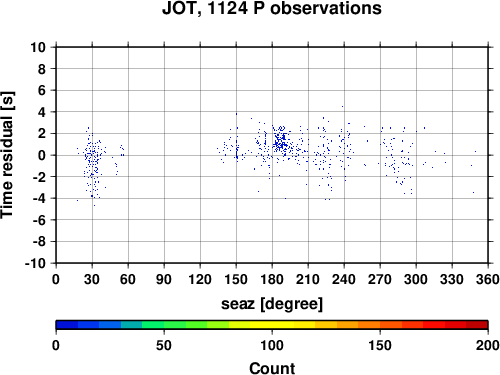

Travel time residuals


Station comments:
=================


Data at the ISC for 30 years between 1994 and 2023.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

JOT    Ohata                                                         41.38200  141.04800      80.0         25-08-1999 25-08-1999
       Aomori

JOT    Ohata                                                         41.38200  141.04817      80.0         25-08-1999 03-03-2000
       Aomori
