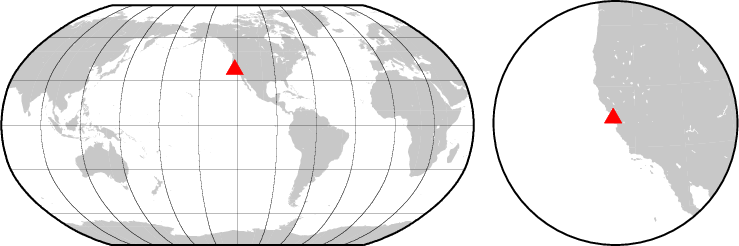

Station details:
================

Code: JRSC
Latitude:  37.40372
Longitude: -122.23867
Elevation:    70.5
Depth:
Name: Jasper Ridge
Region: California,U.S.A.
Status:

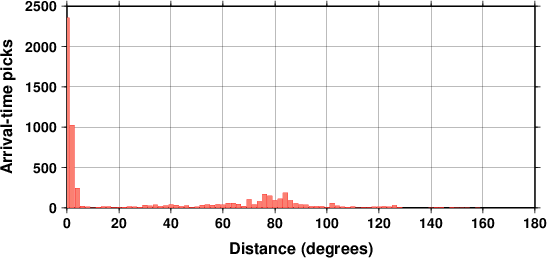

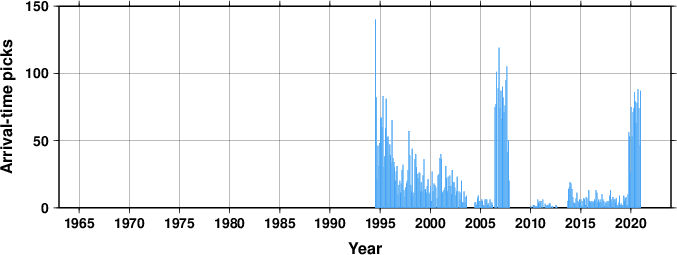

Arrival picks statistics
Travel Time Analysis

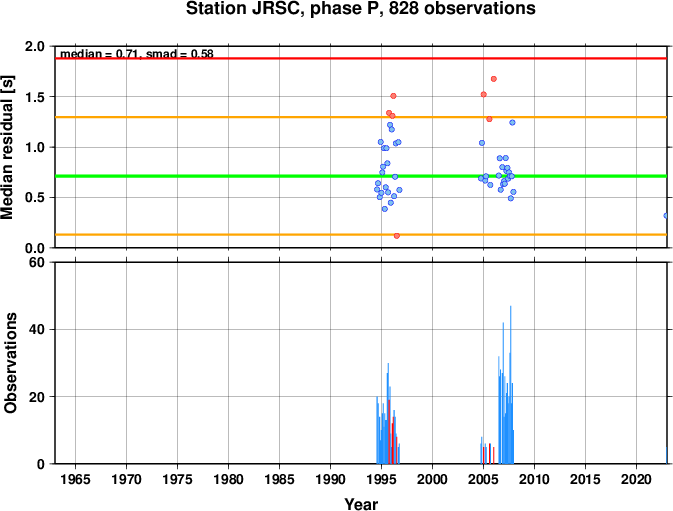

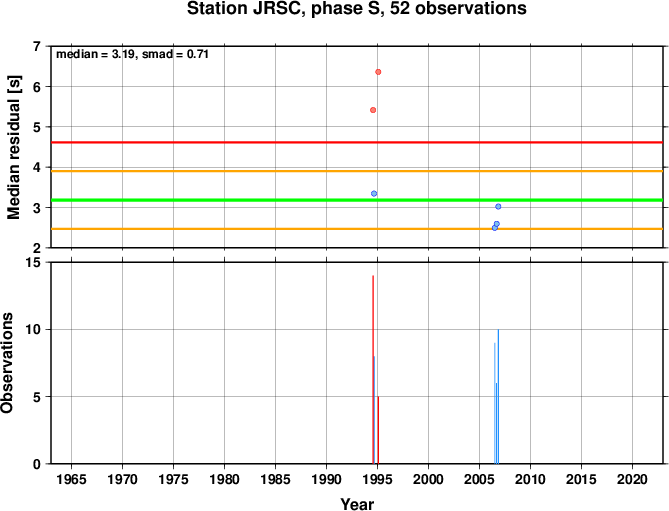

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

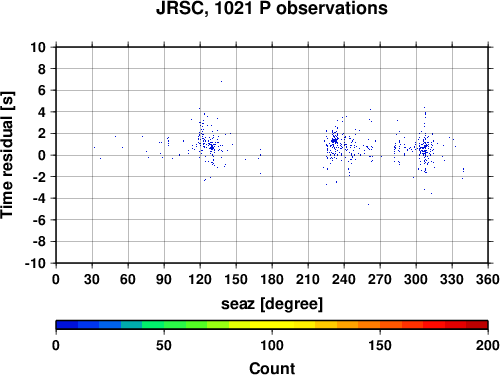

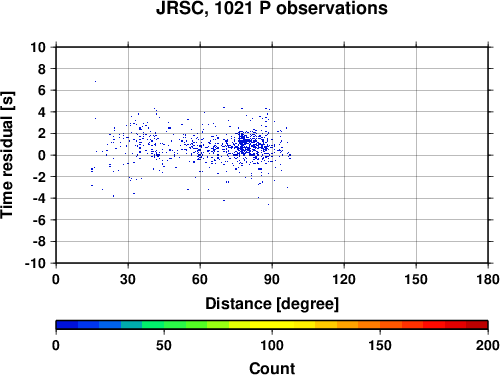

Travel time residuals


Station comments:
=================

opened 19940630
Coords corrected 20000628

Data at the ISC for 25 years between 1994 and 2020.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

JRSC   Jasper Ridge                                                  37.40380 -122.23800     103.0         25-08-1999 25-08-1999
       California
