Station details:
================

Code: JTM
Latitude:  40.78683
Longitude:  141.06817
Elevation:   130.0
Depth:
Name: Tenmabayashi
Region: Aomori,Japan
Status:

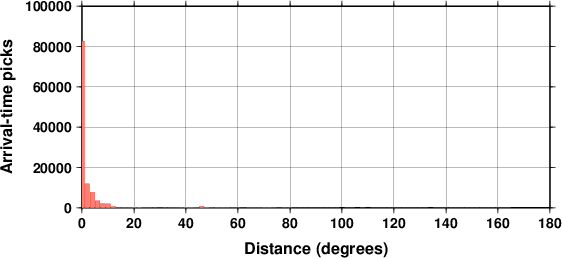

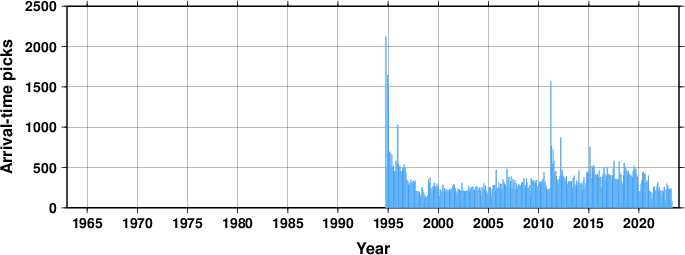

Arrival picks statistics
Travel Time Analysis

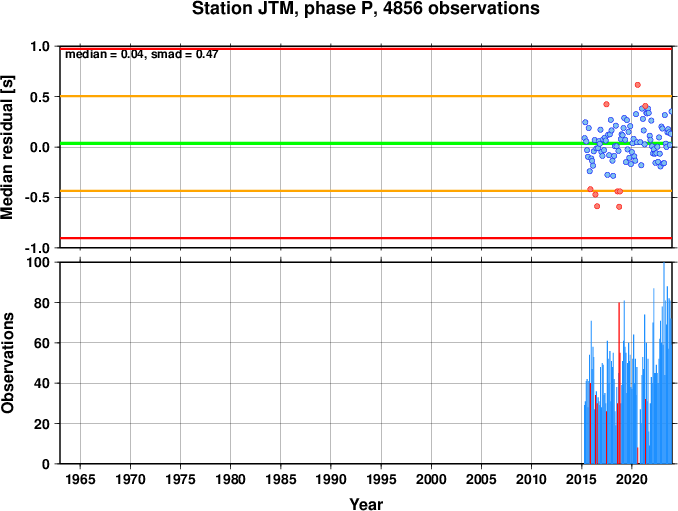

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.
Travel time residuals


Station comments:
=================

JMA code TENMAB

Data at the ISC for 32 years between 1994 and 2025.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

JTM    Tenmabayashi                                                  40.78680  141.06800     130.0         25-08-1999 25-08-1999
       Aomori

JTM    Tenmabayashi                                                  40.78683  141.06817     130.0         25-08-1999 03-03-2000
       Aomori
