Station details:
================

Code: JVI
Latitude:  31.93800
Longitude:   35.33900
Elevation:   680.0
Depth:
Name: Jordan Valley
Region: Israel
Status:

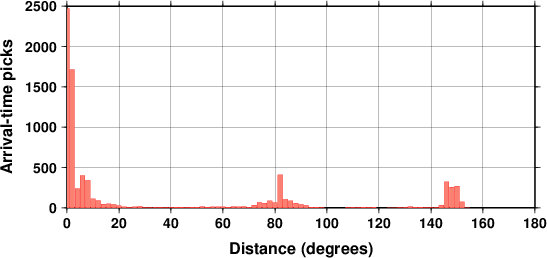

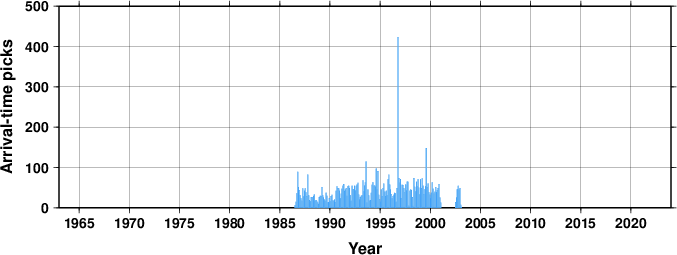

Arrival picks statistics
Travel Time Analysis

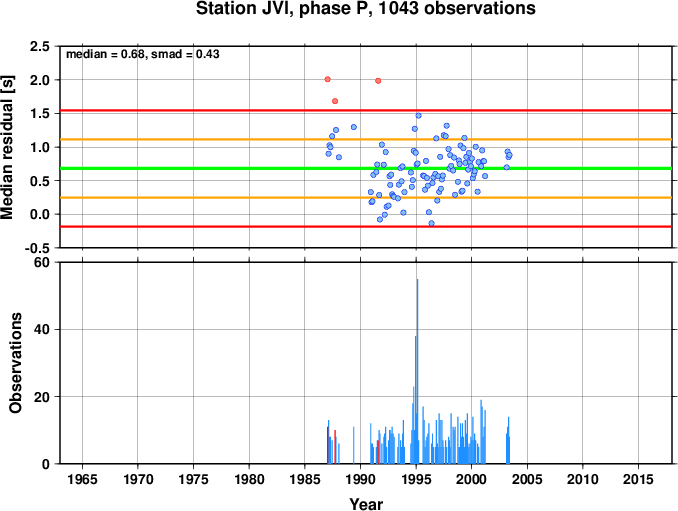

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.
Travel time residuals


Station comments:
=================

Jordan Valley-Rimmonim. Formerly Mount Masua, name changed Apr 1991
opened 19860717
Coords corrected >1 km 20010705

Data at the ISC for 18 years between 1986 and 2003.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

JVI    Jordan Valley                                                 31.93000   35.35000     680.0         25-08-1999 25-08-1999
       Israel
