Station details:
================

Code: KAKJ
Latitude:  36.20500
Longitude:  140.17300
Elevation:   -80.0
Depth:
Name: Kakioka Outpost
Region: Ibaraki,Japan
Status:

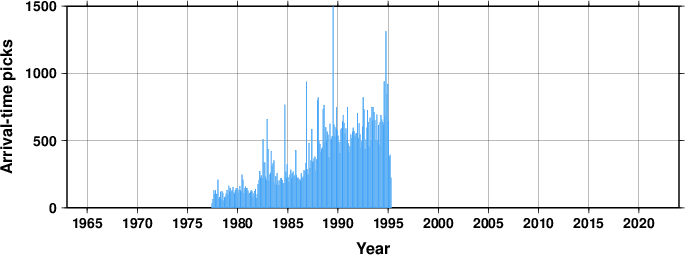

Arrival picks statistics
Travel Time Analysis

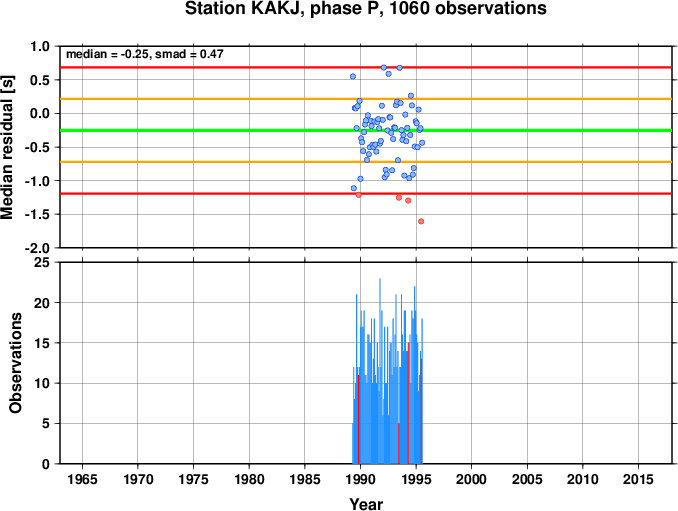

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

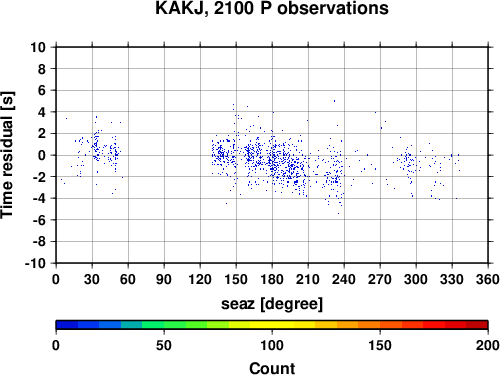

Travel time residuals


Station comments:
=================

Checked against station bulletin
opened 1978
JMA code KAKIO2

Data at the ISC for 19 years between 1977 and 1995.
