Station details:
================

Code: KAMS
Latitude:  20.30880
Longitude:   44.58110
Elevation:   325.0
Depth:
Name: Al Khamasin
Region: Saudi Arabia
Status:

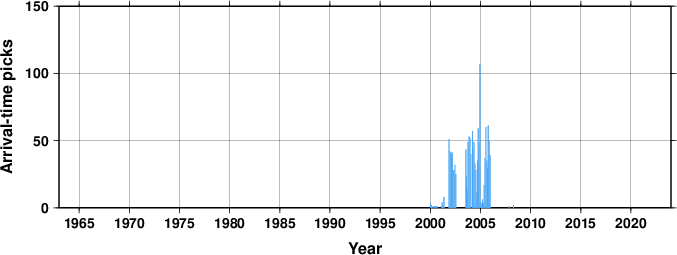

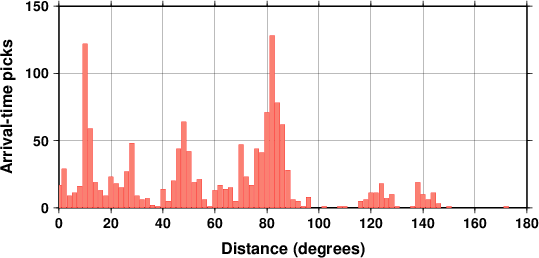

Arrival picks statistics
Travel Time Analysis

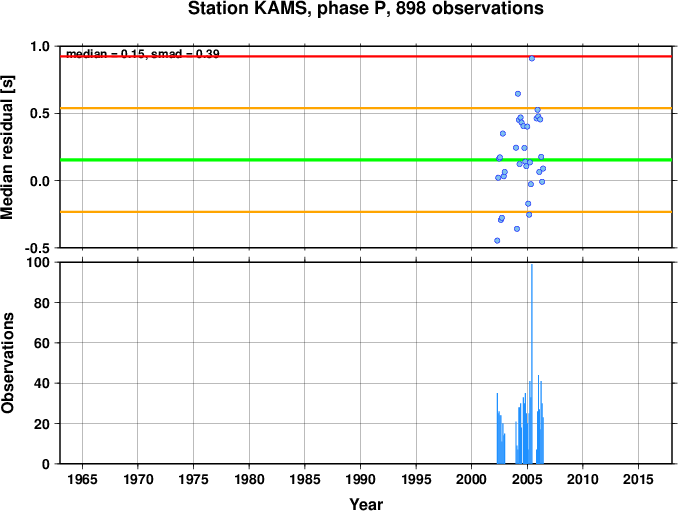

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

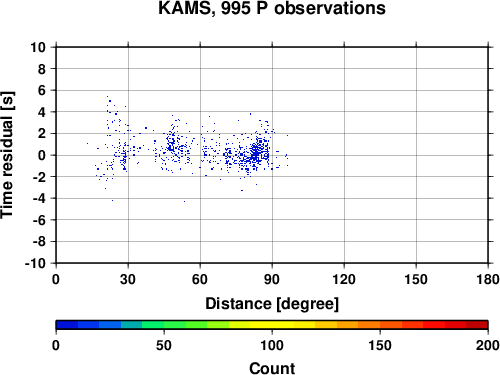

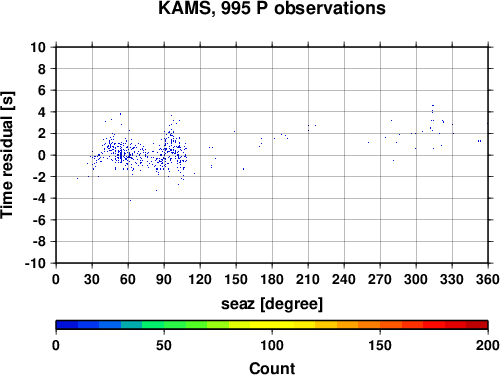

Travel time residuals


Station comments:
=================

opened 19980518
Update via CSEM/EMSC

Data at the ISC for 8 years between 2000 and 2008.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

KAMS   Al Khamasin                                                   20.30919   44.57981     750.0         10-09-2001 19-05-2008
       Saudi Arabia
