Station details:
================

Code: KAT
Latitude:  39.02800
Longitude:   56.27000
Elevation:   200.0
Depth:
Name: Kizyl-Arvat
Region: Turkmenistan
Status:

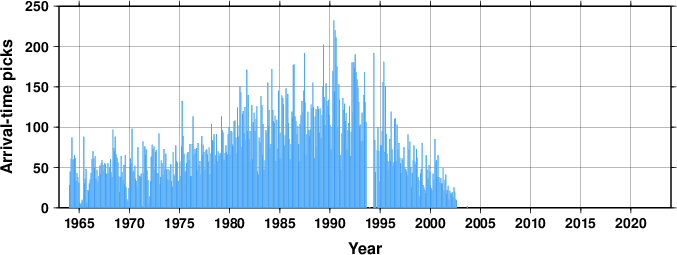

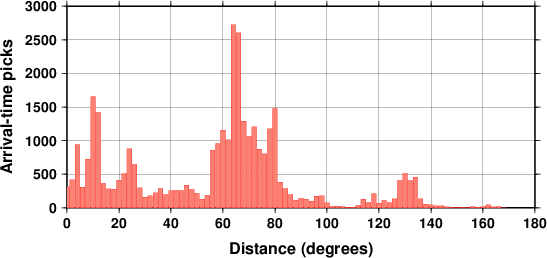

Arrival picks statistics
Travel Time Analysis

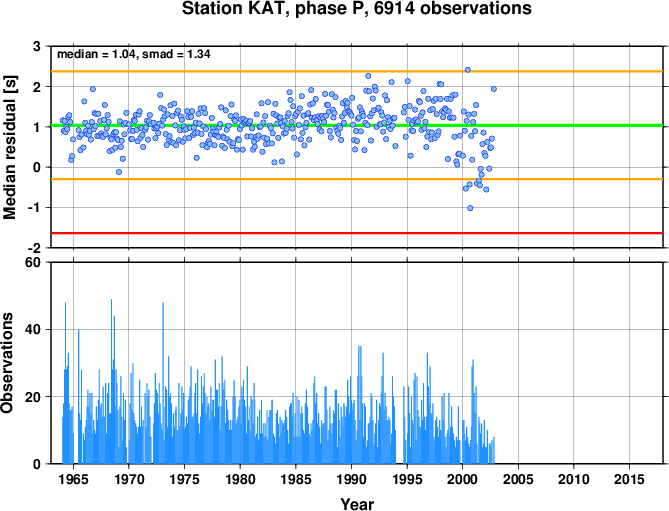

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

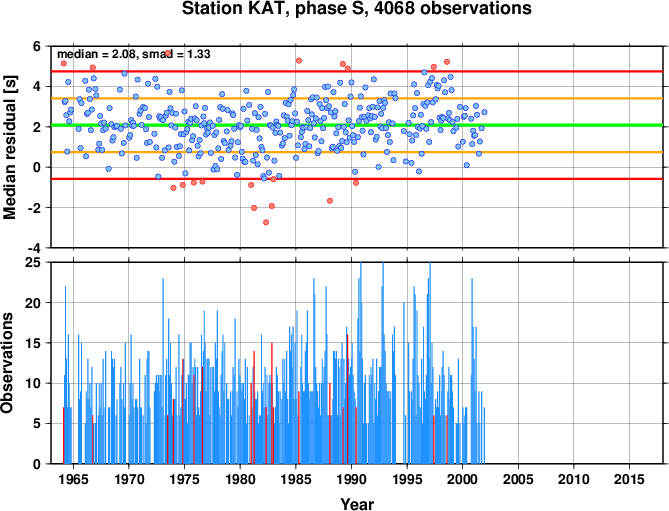

Travel time residuals

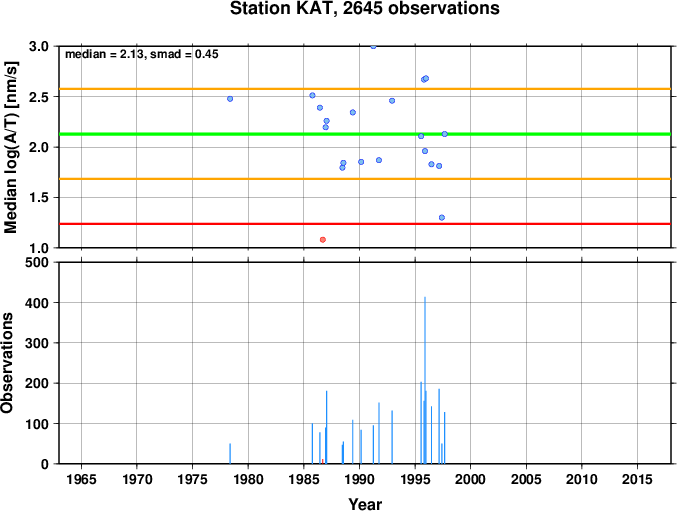

Amplitude analysis
 On the top graph every dot represents the median value for that month of data.
The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line (if present) shows twice the standard deviation (2 * smad).
The bottom graph shows the number of observations for each month. Any red columns show those observations whose monthly median value is greater than twice the standard deviation (2 * smad) from the overall (running) median (shown in the top graph by red dots).

Red dots indicate a possible calibration error.


Station comments:
=================

Checked against station bulletin
MC2R4-RAT-RCH-RID-RIM-RKM-RTA-RWM
opened 1949
OBN 1949-19930804
TRKM opened 19930804
Coords corrected >19 km 20000119

Data at the ISC for 55 years between 1949 and 2003.
